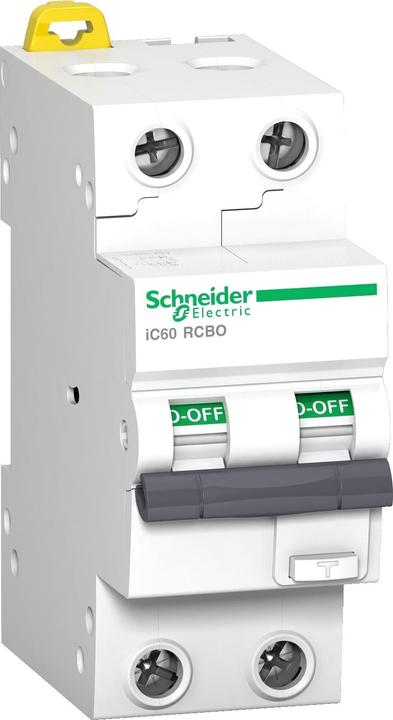

Schneider Electric FI/LS switch iC60H

Residual current circuit breaker with overload protection (RCCB/MCB) Acti 9 iC60H, 10kA (IEC/EN 61009-1 and IEC/EN 61009-2-1), 15kA (IEC/EN 60947-2). 2-pole, rated current 10A, type C characteristic, earth fault sensitivity 30mA, earth fault protection class type A SI, operating voltage (Ue) 230V AC, insulation voltage (Ui) 500V AC. Ensures comprehensive protection of final circuits against overloads and fault currents. Switching and disconnecting circuits. Jump switching for low-wear contact operation. Mechanically separated red indicator for tripping of the circuit breaker or tripping due to a fault current. Clear switching position indication through green marking on the device's operating knob. Test button for regular function checks. The SI version (superimmunized) is designed to maintain operational continuity in systems where high transient leakage currents may occur due to operational conditions or external influences. Technology of the tripping unit - thermomagnetic. Additional snap-on auxiliary modules (optional) - auxiliary switch for status indication, fault indication switch, OF/SD switch with Ti24 interface for status reporting to a programmable logic controller. Tool-free mounting on the left side of the device. Color shade RAL 9003. The RCCB/MCB IC60H complies with the following standards - IEC/EN 61009-1, IEC/EN 61009-2-1, and IEC/EN 60947-2. Furthermore, this series is certified by IMQ, NF, KEMA-KEUR, and VDE.
