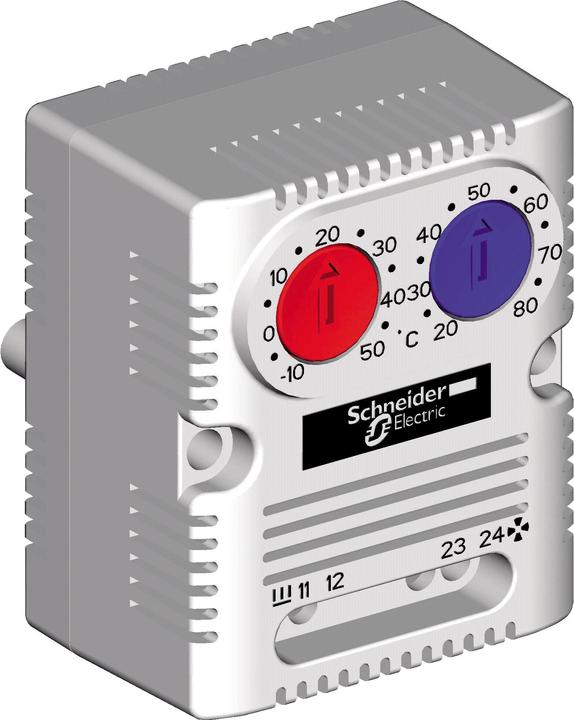

Schneider Electric Double thermostat NSYCCOTHD

Ratings
BrandMore from Schneider Electric
Delivered Thu, 24.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–

Product details

The NSYCCOTHD double thermostat from Schneider Electric is a versatile actuator designed for precise temperature control in radiator applications. Equipped with a bimetal sensor, it offers both heating and ventilation functions, controlled via a NO/NC contact type. The thermostat is suitable for use in electrical systems with a voltage of up to 250 V and allows for manual temperature control in the range of 0 °C to 60 °C. Installation is straightforward on a 35 mm DIN rail or alternatively on cross rails and mounting plates. Made from self-extinguishing plastic (PC) in light gray, the device meets the IP20 protection class, making it ideal for use in dry indoor environments. The digital connection is made via four terminals with a maximum cross-section of 2.5 mm², allowing for flexible installation.

  • Bimetal sensor with heating and ventilation function
  • Manual temperature control from 0 °C to 60 °C
  • Easy installation on 35 mm DIN rail or mounting plate
  • Self-extinguishing material (UL94 V0)
  • Protection class IP20 for use in dry indoor environments.

Key specifications

Thermostat type
Actuator
Suitable for
Radiator
mounting style
Top-hat rail
Smart Home
Not compatible
Power supply
Electrical connection
Items per sales unit
1 Piece
Item number
18017666

General information

Manufacturer
Schneider Electric
Category
Thermostats
Manufacturer no.
NSYCCOTHD
Release date
5.5.2021

Colour

Colour
Grey
Exact colour description
Light grey

Material

Material group
Plastic
Material
PC

Thermostat properties

Thermostat type
Actuator
Suitable for
Radiator
temperature control
Manual
Temperature range
0° - 60° C
connector type
4-pin
Display
Digital
mounting style
Top-hat rail

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Safety

Protection type (IP code)
IP20

Power supply

Power supply
Electrical connection

Battery properties

Voltage
250 V

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
4.40 cm
Width
5.60 cm
Height
6.80 cm
