Schneider Electric Current relay MicroLogic 2.2 for ComPacT NSX 250 circuit-breaker, electronic, B

Ratings
Delivered between Wed, 11.6. and Tue, 17.6.
More than 10 items in stock at supplier

Product details

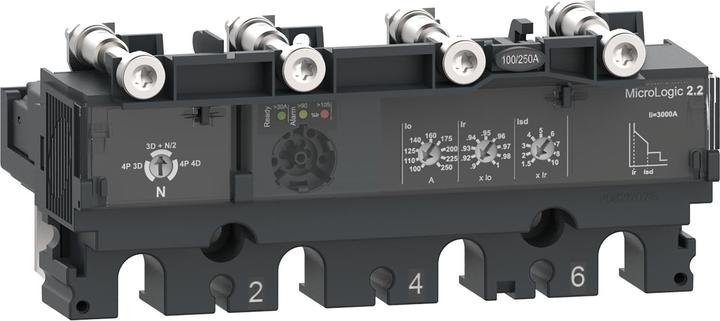

Schneider Electric Electronic Release Device C2542D250

Manufacturer: Schneider Electric
Designation: Electronic Release Device MicroLogic 2.2
Type: C2542D250
Overload Release Current Setting: 100 to 250 A
Initial Value of Undelayed Short-Circuit Release Setting Range: 3000 A
Final Value of Undelayed Short-Circuit Release Setting Range: 3000 A
Rated Continuous Current Iu: 250 A
Type of Voltage for Operation: AC
Rated Control Supply Voltage Us at AC 50 Hz: 690 V
Rated Control Supply Voltage Us at AC 60 Hz: 690 V
Number of Poles: 4
Short-Circuit Release Function: Delayed
With Earth Fault Protection Function: No
Type of Motor Protection: Electronic Release

Additional Details:
This electronic 4-pole 4d release device MicroLogic 2.2 is an electronic release device used in the ComPacT NSX 250 circuit breakers. This electronic release device with a rated current of 250 A is the best choice for all standard and special applications. It features customizable long-time overload protection. It also offers customizable short-time protection and a fixed undelayed short-circuit protection. MicroLogic 2.2 indicates overloads with alarm LEDs. The green Ready LED blinks when the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture when combined with the base switch PowerTag NSX and ComPacT NSX.

Key specifications

Circuit breaker type
Circuit breaker
Length
89.40 mm
Width
139.70 mm
number of poles
4
Item number
32497579

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
C2542D250
Release date
23.1.2023

Colour

Colour
Green
Exact colour description
Green

Circuit Breaker Features

Circuit breaker type
Circuit breaker
number of poles
4
Tripping characteristic
Sluggish ---
Rated voltage
690 V
voltage type
AC
Rated insulation voltage Ui
690 V

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
89.40 mm
Width
139.70 mm
Height
59.70 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
