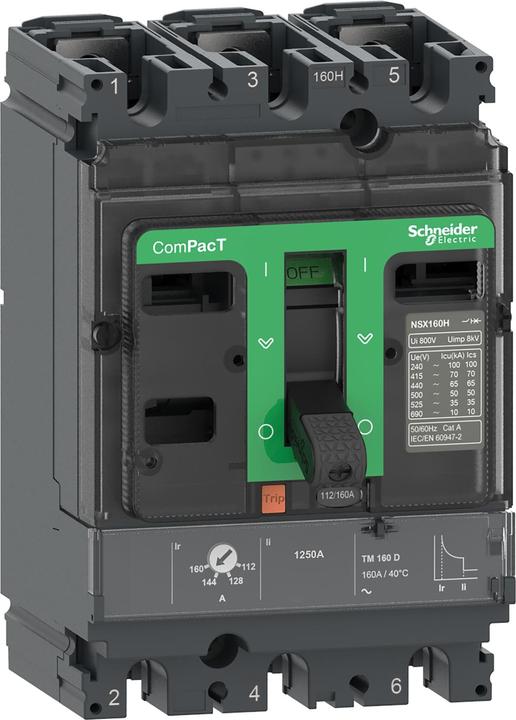

Schneider Electric moulded-case circuit-breaker C16F3TM100 Manufacturer :Schneider Electric Designation :ComPacT NSX160F moulded-case circuit-breaker with type :C16F3TM100 Rated continuous current Iu :100 A Rated voltage :690 V Rated short-circuit breaking current Icu at 400 V, 50 Hz :36 kA Overload release Current setting :112...160 A Setting range of the instantaneous short-circuit release :800 A Integrated earth fault protection :no Connection type main circuit :Screw connection Device type :Built-in device Fixed installation technology Suitable for top-hat rail mounting :no Top-hat rail mounting optional :no With trip indicator :no Number of poles :3 Position of connection for main circuit :front Design of actuating element :Toggle lever Complete device with protection unit :yes Motor-drive unit integrated :no Motor-drive unit optional :yes Protection class (IP) :IP30 Schneider Electric C16F3TM100 moulded-case circuit-breaker: Further details This ComPacT NSX160F is a complete 3P 3d circuit-breaker for fixed installation, designed to optimise space requirements and breaking capacity. It is an optimal choice for all standard and special applications. The breaking capacity (Icu) is 36 kA rms at 415 VAC, 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product has a thermo-magnetic tripping device (TMD) with a rated capacity of 100 A. The TMD trip unit offers adjustable thermal overload protection and fixed magnetic protection. This 3-pole version (105 mm x 161 mm x 86 mm) comes with a wide range of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160F is part of Schneider Electric's EcoStruxure Power architecture. EAN: 3606481997081.
