Schneider Electric Compact circuit-breaker

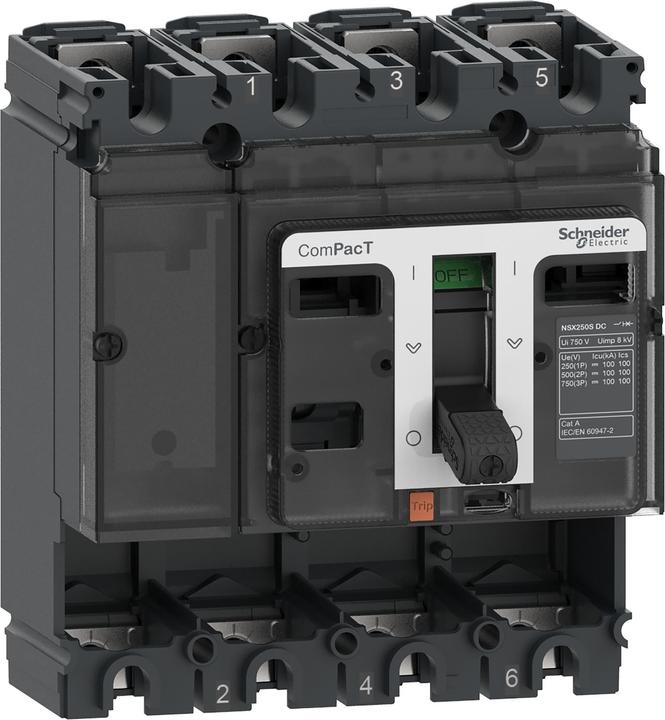

Schneider Electric moulded case circuit-breaker C25S4D Manufacturer :Schneider Electric Designation :ComPac moulded case circuit-breaker Basic switch Type :C25S4D Rated continuous current Iu :250 A Rated voltage :750 V Rated short-circuit breaking current Icu at 400 V, 50 Hz :100 kA Integrated earth fault protection :no Connection type main circuit :Screw connection Device type :Built-in device Fixed installation technology Suitable for top-hat rail mounting :no Top-hat rail mounting optional :yes With trip indicator :yes Number of poles :4 Position of connection for main circuit :front Design of actuating element :toggle Complete device with protection unit :no Motorised actuator integrated :no Motorised actuator optional :yes Degree of protection (IP) :IP30 Schneider Electric C25S4D moulded-case circuit-breaker: further details This is a 4-pole basic switch for the ComPacT NSX 2+C3:C950S DC circuit-breaker, designed to optimise space requirements and breaking capacity. It is an optimal choice for applications that use DC voltages. The breaking capacity (Icu) is 100 kA rms at 750 VDC. The rated current is 250 A and the operating voltage is 750 VDC. This basic switch is supplied without a trip unit (to be ordered separately) and can be equipped with a wide range of optional functions and accessories. The dimensions are 161x140x86 mm (H x W x D). It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. EAN: 3606481994868.
