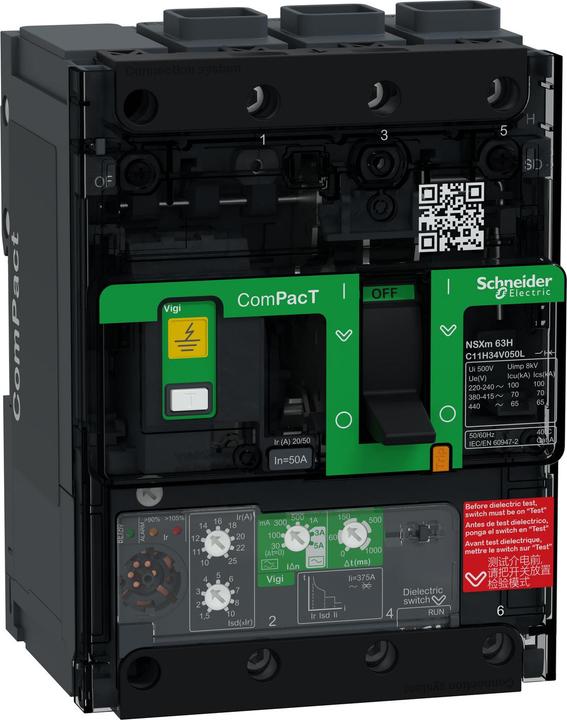

Schneider Electric Compact Circuit Breaker C11H34V050L

Manufacturer: Schneider Electric
Designation: Compact circuit breaker with residual current protection
Type: C11H34V050L
Rated continuous current Iu: 50 A
Rated voltage: 440 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 70 kA
Overload release current setting: 20 to 50 A
Setting range of the short-time delay short-circuit release: 30 to 500 A
Setting range of the instantaneous short-circuit release: 750 A
Integrated earth fault protection: Yes
Connection type for main circuit: Screw connection
Device design: Built-in device fixed installation technology
Suitable for DIN rail mounting: Yes
DIN rail mounting optional: No
With trip indicator: Yes
Number of poles: 3
Position of connection for main circuit: Front
Design of the operating element: Knob
Complete device with protection unit: Yes
Integrated motor drive: No
Optional motor drive: No
Protection class (IP): IP40

The ComPacT NSXm100H is a complete, fixed-mounted 3P circuit breaker designed to optimize space and breaking capacity. The breaking capacity (Icu) is 70 kA at 415 VAC, 50/60 Hz. The operating voltage is 440 VAC 50/60 Hz. It introduces new features such as the EverLink connection technology. It offers built-in DIN rail and panel mounting capabilities, as well as additional equipment with externally visible spring-loaded terminals. This 3-pole residual current circuit breaker (RCCB) is one of the smallest on the market. Its dimensions are 108 mm (W) x 144 mm (H) x 80 mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
