Schneider Electric Compact circuit-breaker

Ratings
BrandMore from Schneider Electric
Delivered between Sat, 25.4. and Sat, 9.5.
6 pieces in stock at supplier
free shipping

Product details

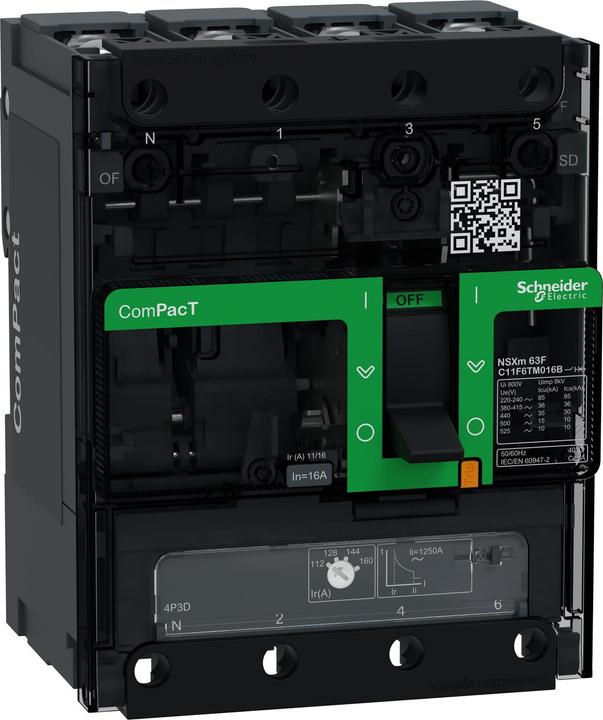

Schneider Electric Compact Circuit Breaker C11F6TM016B

Manufacturer: Schneider Electric
Designation: Compact Circuit Breaker ComPacT NSXm 16A TM1
Type: C11F6TM016B
Rated Continuous Current Iu: 16 A
Rated Voltage: 690 V
Rated Short-Circuit Breaking Capacity Icu at 400 V, 50 Hz: 36 kA
Overload Release Current Setting: 11.2..16 A
Setting Range of Instantaneous Short-Circuit Release: 500 A
Integrated Earth Fault Protection: no
Connection Type for Main Circuit: Screw Connection
Device Design: Built-in Device Fixed Installation Technology
Suitable for DIN Rail Mounting: yes
DIN Rail Mounting Optional: no
With Trip Indicator: yes
Number of Poles: 4
Position of Connection for Main Circuit: front
Actuator Element Design: Knob
Complete Device with Protection Unit: yes
Integrated Motor Drive: no
Optional Motor Drive: no
Protection Class (IP): IP40

Schneider Electric Compact Circuit Breaker C11F6TM016B: additional details
ComPacT NSXm Compact Circuit Breaker, 16A, 36kA at 415VAC, for all NS standard applications. It offers new features such as Everlink technology, compatibility for DIN rail or mounting plate installation. The electrical additional equipment is visible from the outside. ComPacT NSXm is one of the smallest compact circuit breakers on the market, measuring 108mm (W) x 137mm (H) x 80mm (D). This is a 4-pole version with a built-in thermal-magnetic release. It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.

Key specifications

Circuit breaker type
Circuit breaker
Mounting type
Built-in installation
number of poles
4
Length
80 mm
Width
108 mm

General information

Item number
33627570
Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
C11F6TM016B
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Circuit breaker
Mounting type
Built-in installation
Mounting type
Screw fastening
number of poles
4
Rated current
16 A
Rated voltage
690 V
voltage type
AC/DC
Protection type (IP code)
IP40

Origin

Country of origin
Poland

Voluntary climate contribution

CO₂ emissions
18.08 kg
Climate contribution
CHF 0.43

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
80 mm
Width
108 mm
Height
137 mm

30-day right of return
24 Months Warranty (Bring-in)
