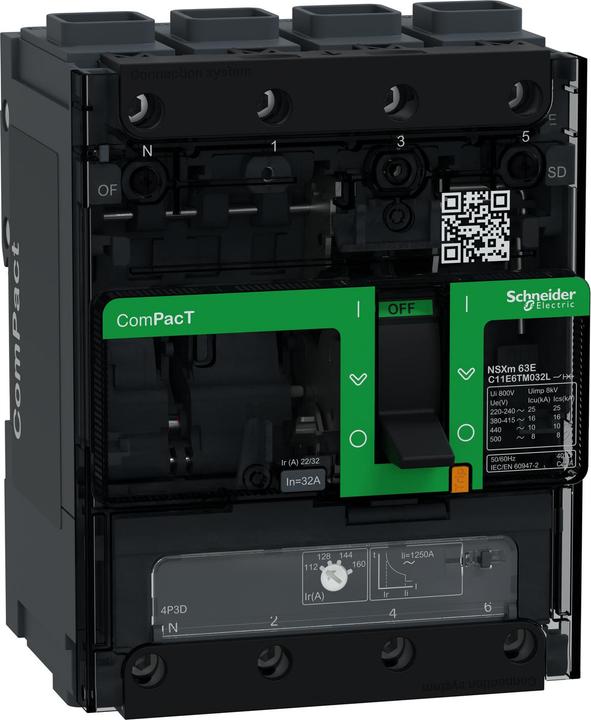

Schneider Electric Compact circuit-breaker

Schneider Electric Compact Circuit Breaker C11E6TM032L

Manufacturer: Schneider Electric
Designation: Compact Circuit Breaker ComPacT NSXm 32A TM3
Type: C11E6TM032L
Rated Continuous Current Iu: 32 A
Rated Voltage: 690 V
Rated Short-Circuit Breaking Capacity Icu at 400 V, 50 Hz: 16 kA
Overload Release Current Setting: 22.4..32 A
Setting Range of Instantaneous Short-Circuit Release: 600 A
Integrated Earth Fault Protection: no
Connection Type for Main Circuit: Screw connection
Device Design: Built-in device Fixed installation technology
Suitable for DIN Rail Mounting: yes
DIN Rail Mounting Optional: no
With Trip Indicator: yes
Number of Poles: 4
Position of Connection for Main Circuit: front
Actuating Element Design: Knob
Complete Device with Protection Unit: yes
Integrated Motor Drive: no
Optional Motor Drive: no
Protection Class (IP): IP40

Schneider Electric Compact Circuit Breaker C11E6TM032L: further details
ComPacT NSXm, 32A, 16kA at 415VAC, for all NS standard applications. It offers new features such as Everlink technology, mountability on DIN rail or mounting plate. The electrical additional equipment is visible from the outside. ComPacT NSXm is one of the smallest compact circuit breakers on the market, measuring 108mm (W) x 137mm (H) x 80mm (D). This is a 4-pole version with a built-in thermal-magnetic release. It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
