Schneider Electric Compact circuit-breaker

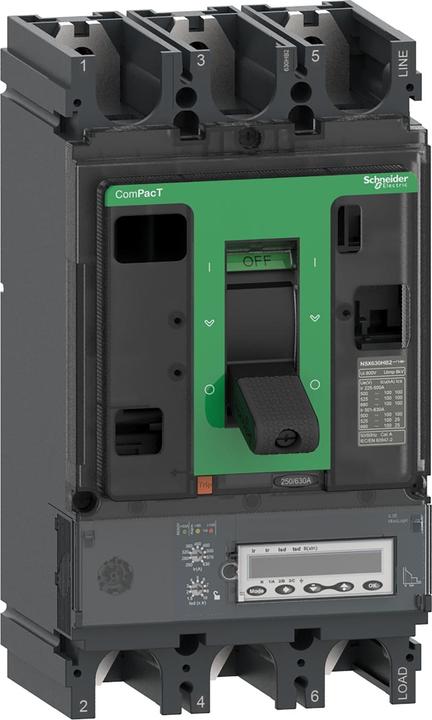

Schneider Electric moulded-case circuit-breaker C40W35E400 Manufacturer :Schneider Electric Designation :moulded-case circuit-breaker ComPacT NSX400HB2 Type :C40W35E400 Rated continuous current Iu :400 A Rated voltage :690 V Overload release Current setting :160..400 A Setting range of the short-time delayed short-circuit release :600..4000 A Setting range of the instantaneous short-circuit release :600...6000 A Integrated earth fault protection :no Connection type main circuit :Screw connection Device type :Built-in device Fixed installation technology Suitable for top-hat rail mounting :no Top-hat rail mounting optional :no With trip indicator :no Number of poles :3 Position of connection for main circuit :front Actuator design :Knob Complete device with protection unit :yes Motor-drive unit integrated :no Motor-drive unit optional :yes Protection class (IP) :IP40 Schneider Electric C40W35E400 moulded-case circuit-breaker: Further details This ComPacT NSX400HB2 is a complete 3P 3d circuit-breaker for fixed installation, designed to optimise space requirements and breaking capacity. It is an optimal choice for all standard and special applications. The breaking capacity (Icu) is 85 kA rms at 500 VAC 50/60 Hz and 100 kA rms at 690 VAC 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product has a MicroLogic 5.3 E electronic tripping device with a rated output of 400 A. The MicroLogic 5.3 E trip unit offers adjustable long-time, short-time and instantaneous protection. MicroLogic 5.3 E has an integrated display for fine adjustment and display of the energy meter. This 3-pole version (140 mm x 255 mm x 110 mm) comes with a wide range of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400HB2 is part of Schneider Electric's EcoStruxure Power architecture. EAN: 3606481989192.
