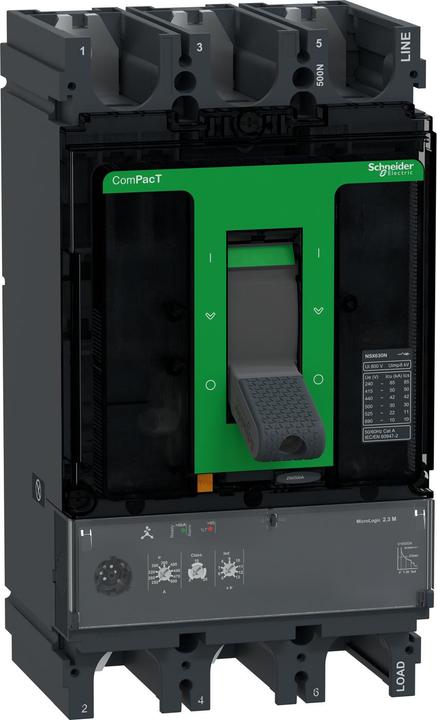

Schneider Electric C63N32M500 Compact circuit-breaker ComPacT NSX630N with

Schneider Electric Compact Circuit Breaker C63N32M500

Manufacturer: Schneider Electric
Designation: Compact Circuit Breaker ComPacT NSX630N with Type: C63N32M500
Overload Release Current Setting: 250..500 A
Setting Range of the Instantaneous Short-Circuit Release: 6500 A
With Thermal Protection: yes
Phase Failure Sensitive: yes
Tripping Technology: electronic
Rated Operating Voltage: 690 V
Rated Continuous Current Iu: 500 A
Connection Type for Main Circuit: Screw Connection
Design of the Operating Element: other
Device Type: Built-in Device Fixed Installation Technology
With Integrated Auxiliary Switch: no
With Integrated Under-Voltage Release: no
Number of Poles: 3
Rated Short-Circuit Breaking Current Icu at 400 V, AC: 50 kA
Protection Class (IP): IP40
Height: 255 mm
Width: 140 mm
Depth: 110 mm

The ComPacT NSX630N is a complete 3P 3d circuit breaker for fixed installation, designed to optimize space requirements and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is effectively 50 kA at 415 VAC, 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product features an electronic tripping device MicroLogic 2.3 M with a rated current of 500 A. The MicroLogic 2.3 M tripping device offers adjustable long-time and short-time protection functions and fixed instantaneous protection. This 3-pole version (140 mm x 255 mm x 110 mm) comes with a variety of optional features and accessories. It complies with international standards (IEC 60947), CCC, EAC, and marine specifications. The ComPacT NSX630N is part of Schneider Electric's EcoStruxure Power architecture.
