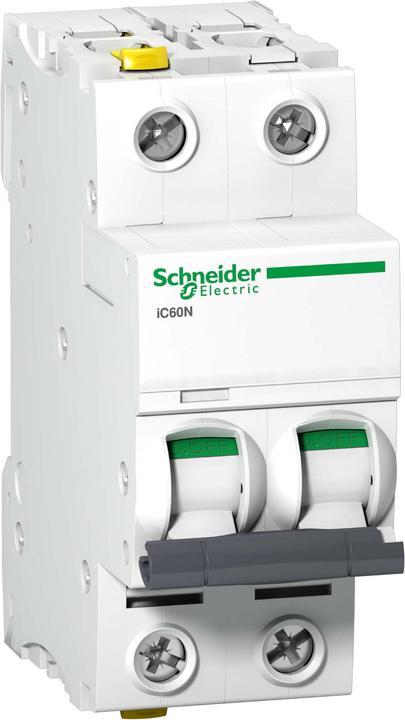

Schneider Electric Acti9 iC60N MCB 2 Pole 10A Curve C

Acti 9 iC60N circuit breaker, 6kA (IEC/EN 60898-1), 10kA (IEC/EN 60947-2). 2-pole, rated current 10A, C-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar on the top and bottom of the device. Jump switching for low-wear operation of the contacts. Moving insulation cover. Actuation of the DIN rail mounting element on the front side of the device for tool-free assembly and easy accessibility for the user. With mechanical front-side fault indication (VisiTrip) to display tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free safety on the outgoing side. Terminals IP20, moving insulation cover. Double connection terminal from above or below. Easy removal of the individual device when the phase busbar is installed, thanks to the front-accessible fastening element. Tripping unit technology: thermomagnetic. Compatible with the residual current devices of the Acti 9 iID series as well as the Vigi iC60 residual current block. Additional snap-on auxiliary modules (optional): indication of switching position, fault tripping, operational current tripping, undervoltage tripping, overvoltage tripping. Color shade RAL 9003. The iC60N circuit breaker complies with the following standards: IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified.
