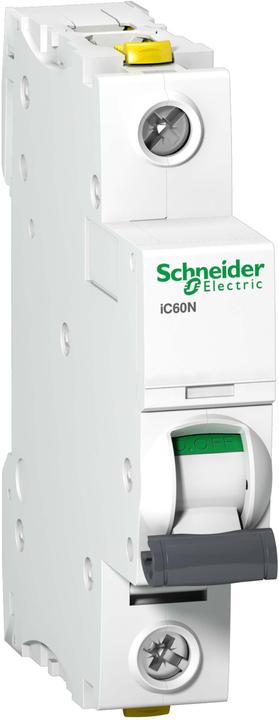

Schneider Electric Acti9 iC60N MCB 1 Pole 6A Curve C

Acti 9 iC60N circuit breaker, 6kA (IEC/EN 60898-1), 10kA (IEC/EN 60947-2). Single-pole, rated current 6A, C-characteristic, operating voltage (Ue) 220-240V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar on the top and bottom of the device. Snap action for low-wear switching of contacts. Sliding insulation cover. Operation of the DIN rail mounting element on the front side of the device for tool-free installation and easy accessibility for the user. With mechanical front-side fault indication (VisiTrip) to show tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free status on the outgoing side. Terminals IP20, sliding insulation cover. Double connection terminal from above or below. Easy removal of the individual device when a phase busbar is installed, thanks to the front-accessible mounting element. Trip unit technology - thermomagnetic. Compatible with the residual current devices of the Acti 9 iID series, as well as the Vigi iC60 residual current block. Additional snap-on auxiliary modules (optional) - indication of switching position, fault tripping, operational current tripping, undervoltage tripping, overvoltage tripping. Color shade RAL 9003. The iC60N circuit breaker complies with the following standards - IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified. Circuit breaker, automatic fuse, LS switch, MCB, LS automatic, short circuit protection, overcurrent protection.
