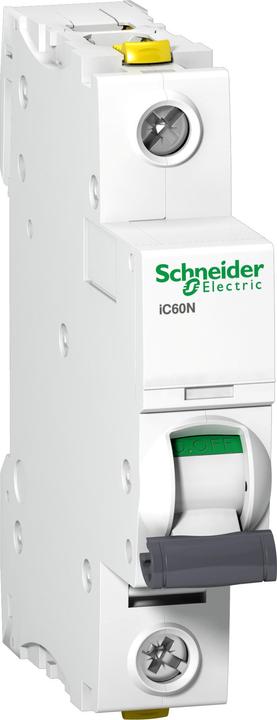

Schneider Electric Acti9 iC60N MCB 1 Pole 6A Curve B

Acti 9 iC60N circuit breaker, 6kA (IEC/EN 60898-1), 10kA (IEC/EN 60947-2). Single-pole, rated current 6A, B-characteristic, operating voltage (Ue) 220-240V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar at the top and bottom of the device. Jump switching for low-wear contact operation. Moving insulation cover. Actuation of the DIN rail mounting element on the front side of the device for tool-free installation and easy accessibility for the user. With mechanical front-side fault indication (VisiTrip) to show tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free safety on the outgoing side. Terminals IP20, moving insulation cover. Double connection terminal from above or below. Easy removal of the individual device when the phase busbar is installed, thanks to the front-accessible mounting element. Trip unit technology - thermomagnetic. Compatible with the RCDs of the Acti 9 iID series as well as the Vigi iC60 RCD block. Additional auxiliary modules (optional) can be added - indicating switching position, fault tripping, working current trip, undervoltage trip, overvoltage trip. Colour shade RAL 9003. The iC60N circuit breaker complies with the following standards - IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified. Circuit breaker, automatic fuse, MCB, short circuit protection, overcurrent protection, short circuit.
