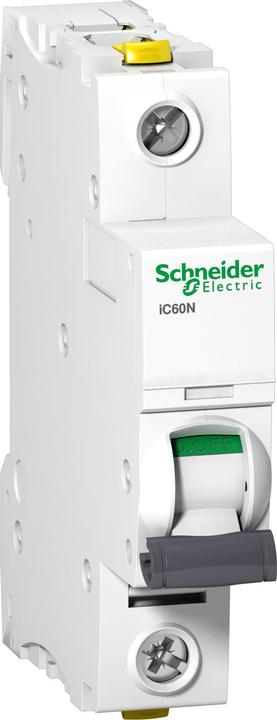

Schneider Electric Acti9 iC60N MCB 1 Pole 2A Curve C

Acti 9 iC60N circuit breaker, 6kA (IEC/EN 60898-1), 50kA (IEC/EN 60947-2). Single-pole, rated current 2A, C-characteristic, operating voltage (Ue) 220-240V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar on the top and bottom of the device. Jump switching for low-wear contact operation. Moving insulation cover. Operation of the DIN rail mounting element on the front side of the device for tool-free installation and easy accessibility for the user. With mechanical front-facing fault indication (VisiTrip) to show tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free status on the outgoing side. Terminals IP20, moving insulation cover. Double connection terminal from above or below. Easy removal of the individual device when the phase busbar is installed, thanks to the front-accessible mounting element. Technology of the tripping unit - thermomagnetic. Compatible with the RCDs of the Acti 9 iID series, as well as the Vigi iC60 RCD block. Additional snap-on auxiliary modules (optional) - indication of switching position, fault tripping, working current tripping, undervoltage tripping, overvoltage tripping. Colour shade RAL 9003. The iC60N circuit breaker complies with the following standards - IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified. Circuit breaker, automatic fuse, MCB, short-circuit protection, overcurrent protection, short circuit.
