Name: Acti9 iC60H MCB 3 Pole 16A Curve C
Brand: Schneider Electric
SKU: 9733624
Price: 40.95 CHF
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Schneider Electric

Acti 9 iC60H circuit breaker, 10kA (IEC/EN 60898-1), 15kA (IEC/EN 60947-2). 3-pole, rated current 16A, C-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar on the top and bottom of the device. Jump switching for low-wear contact operation. Integrated insulation cover. Actuation of the DIN rail mounting element on the front side of the device for tool-free installation and easy accessibility for the user. With mechanical front-side fault indication (VisiTrip) to display tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free status on the outgoing side. Tripping unit technology: thermomagnetic. Compatible with the residual current devices of the Acti 9 iID series as well as the Vigi iC60 residual current block. Additional snap-on auxiliary modules (optional) for displaying switching status, fault tripping, operational current tripping, undervoltage tripping, and overvoltage tripping. Color shade RAL 9003. The iC60H circuit breaker complies with the standards IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified.

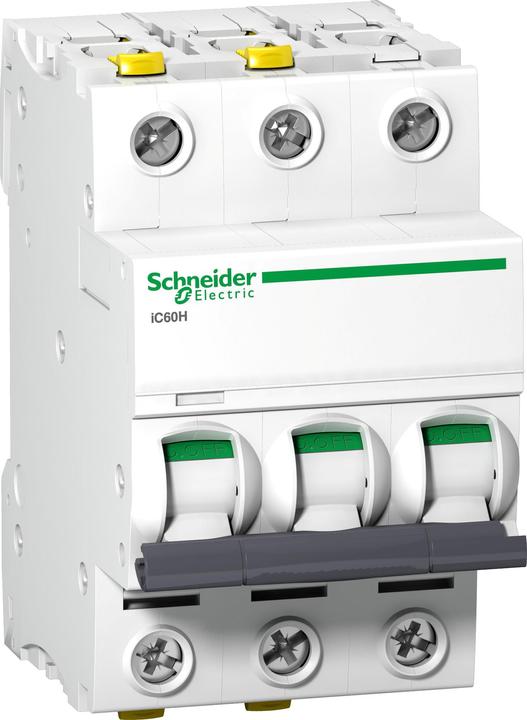

Actual product image Schneider Electric Acti9 iC60H MCB 3 Pole 16A Curve C
