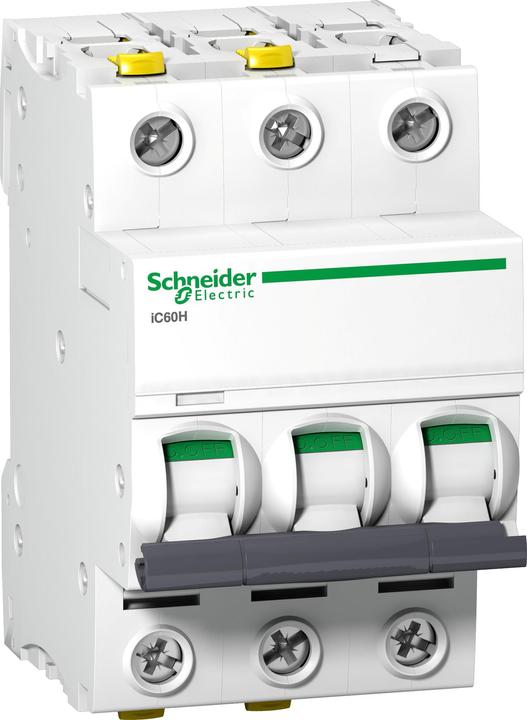

Schneider Electric Acti9 iC60H MCB 3 Pole 10A Curve C

Acti 9 iC60H circuit breaker, 10kA (IEC/EN 60898-1), 15kA (IEC/EN 60947-2). 3-pole, rated current 10A, C-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar on the top and bottom of the device. Jump switching for low-wear contact operation. Integrated insulation cover. Operation of the DIN rail mounting element on the front side of the device for tool-free assembly and easy accessibility for the user. With mechanical front-side fault indication (VisiTrip) to display tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free status on the outgoing side. Tripping unit technology: thermomagnetic. Compatible with the residual current devices of the Acti 9 iID series as well as the Vigi iC60 residual current block. Additional snap-on auxiliary modules (optional): indication of switching position, fault tripping, working current tripping, undervoltage tripping, overvoltage tripping. Color RAL 9003. The iC60H circuit breaker complies with the following standards: IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified. Circuit breaker, automatic fuse, MCB, LS switch, short circuit protection, overload protection.
