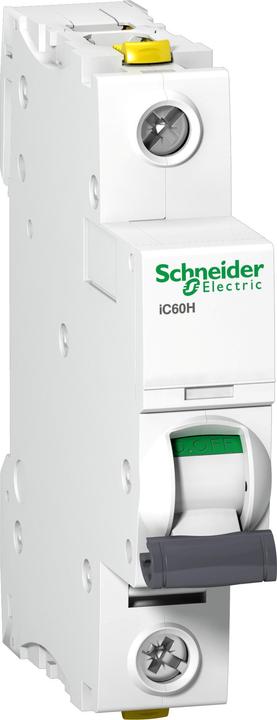

Schneider Electric Acti9 iC60H MCB 1 Pole 16A Curve C
Minimum order 3Supplied by
Conrad CH
Free shipping starting at 50.–
Acti 9 iC60H circuit breaker, 10kA (IEC/EN 60898-1), 15kA (IEC/EN 60947-2). Single-pole, rated current 16A, C-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar on the top and bottom of the device. Spring mechanism for low-wear switching of contacts. Integrated insulation cover. Actuation of the DIN rail mounting element on the front side of the device for tool-free installation and easy accessibility for the user. Equipped with a mechanical front-side fault indication (VisiTrip) to show tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free safety on the outgoing side. Tripping unit technology: thermomagnetic. Compatible with the residual current devices of the Acti 9 iID series as well as the Vigi iC60 residual current block. Additional snap-on auxiliary modules (optional) for displaying switching status, fault tripping, operating current tripping, undervoltage tripping, and overvoltage tripping. Color shade RAL 9003. The iC60H circuit breaker complies with the standards IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified.
Circuit breaker type | Miniature circuit breaker |
Length | 78.50 mm |
Width | 18 mm |
number of poles | 1 |
Mounting type | Flush-mounted |
Item number | 9733606 |
Manufacturer | Schneider Electric |
Category | Residual-current device |
Manufacturer no. | A9F07116 |
Release date | 24.9.2018 |
Sales rank in Category Residual-current device | 15 of 28270 |
Minimum order | 3 |
Colour | White |
Exact colour description | White |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Flush-mounted |
number of poles | 1 |
Tripping characteristic | C |
Rated current | 16 A |
Rated voltage | 230 V |
voltage type | AC/DC |
Rated insulation voltage Ui | 500 V |
Protection type (IP code) | IP20 |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 78.50 mm |
Width | 18 mm |
Height | 91 mm |
Weight | 125 g |
Length | 8.90 cm |
Width | 6.60 cm |
Height | 1.90 cm |
Weight | 118 g |
