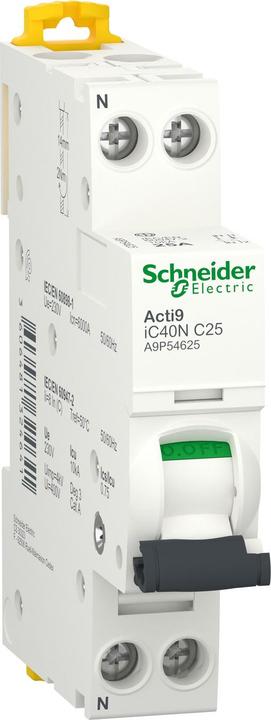

Schneider Electric Acti9 iC40N miniature circuit-breaker-1P+N- A9P54625

The Clario iC40N is a miniature circuit breaker (MCB). It is a 1P+N circuit breaker with one protected pole and a rated current of 25A, featuring a type C tripping characteristic. The breaking capacity is up to 10kA at 230VAC in accordance with the standard EN/IEC 60947-2. This product complies with both the industrial standard EN/IEC 60898-1 and the residential standard EN/IEC 60947-2. Installation and wiring are simplified by the clip-on feature and maintenance-friendly design. The electrical lifespan is up to 10,000 cycles, while the mechanical lifespan is up to 20,000 cycles. The operating voltage is 230VAC. The rated insulation voltage Ui is 400VAC. The rated impulse voltage withstand is 4kV. The operating frequency is either 50Hz or 60Hz. The switch can be mounted on a DIN rail. Its width is 2 x 9 mm. The pollution degree is 3. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 74mm. The weight is 120g. According to the standard IEC 60529, the degree of protection is IP20 and IP40 in the enclosure. The operating temperature ranges from -25°C to 70°C, while the storage temperature ranges from -40°C to 85°C.
