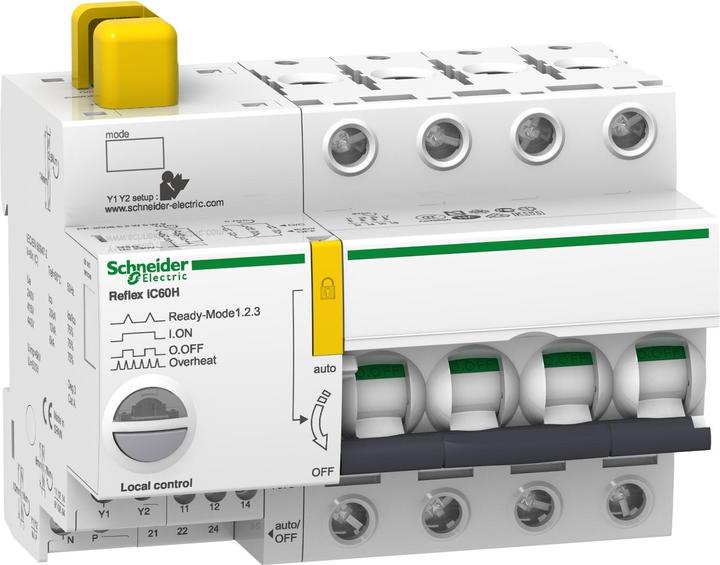

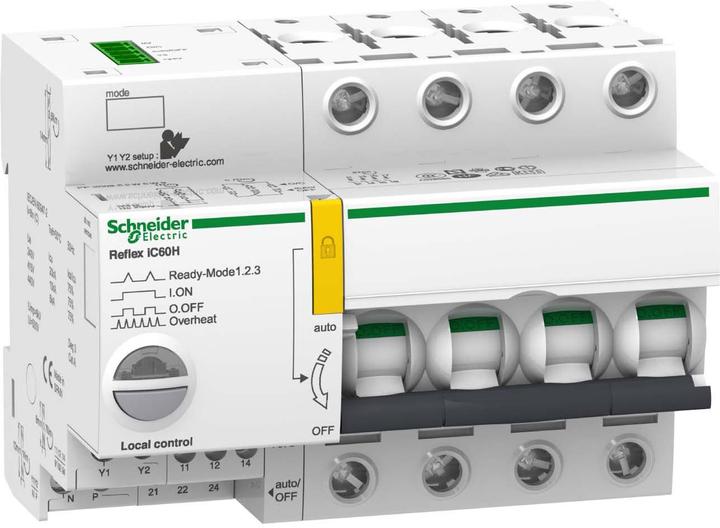

Schneider Electric ACTI 9 REFLEX IC60H TI24 16 A 4P CURVE B

Ratings
Delivered between Sat, 16.8. and Tue, 9.9.

Product details

Current: 16A
Number of poles: 4
Series: iC60H
Tripping characteristic: Type B

Miniature overload switch Acti9 iC60H, 4-pole. The iC60H overload switch with curves B, C, D are multi-standard overload switches that protect the circuit against short-circuit currents and overload currents. VisiSafe ensures that the downstream circuit is always safe, regardless of overvoltage conditions, wear, or operator experience, even in the most challenging environments. The green strip indicates the safe position of the contacts. VisiTrip shows the fault tripping via the red window on the front, allowing for quick diagnosis, resolution, and rapid reconnection of loads, facilitating easier building management and reduced downtime. Insulated connection terminals IP20, large circuit labeling area, double clip for disassembly with mounted combined busbar.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
84 mm
Width
6.50 mm
mounting style
Top-hat rail
number of poles
4
Item number
10310406

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
A9C64416
Release date
15.1.2019
External links
Manufacturer's site (de)

Colour

Exact colour description
RAL 9003

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
B
Rated current
16 A
Rated voltage
415 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
Spain

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
84 mm
Width
6.50 mm
Height
77 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
