Schneider C25N3

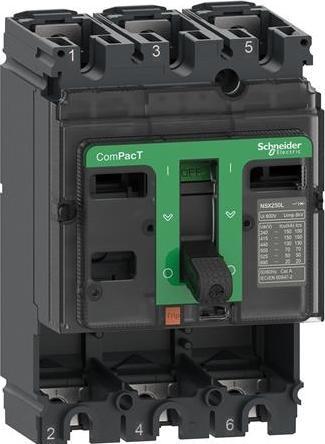

Schneider Electric Compact Circuit Breaker C25N3

Manufacturer: Schneider Electric
Designation: Compact Circuit Breaker ComPacT NSX250N
Type: C25N3
Rated Continuous Current Iu: 250 A
Rated Voltage: 690 V
Rated Short-Circuit Breaking Capacity Icu at 400 V, 50 Hz: 50 kA
Integrated Earth Fault Protection: no
Connection Type for Main Circuit: Screw connection
Device Design: Built-in device with fixed installation technology
Suitable for DIN Rail Mounting: no
DIN Rail Mounting Optional: yes
With Trip Indicator: yes
Number of Poles: 3
Position of Connection for Main Circuit: front
Type of Actuating Element: Knob
Complete Device with Protection Unit: no
Integrated Motor Drive: no
Optional Motor Drive: yes
Protection Class (IP): IP40

Schneider Electric Compact Circuit Breaker C25N3: additional details
This is a 3-pole main switch for ComPacT NSX250N. The ComPacT NSX is designed to optimize space and breaking capacity for all standard and special applications. This main switch is supplied without a tripping unit and is compatible with all types of tripping units, which must be ordered separately. The breaking capacity Icu is 50 kA at 415 VAC, 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz (limited to 440 VAC 50/60 Hz when differential current protection is present). It can be equipped with a variety of optional features and accessories. The dimensions are 105 mm x 161 mm x 86 mm. It ensures compliance with international standards (IEC 60947), CCC, EAC, and marine specifications. The ComPacT NSX250N is part of Schneider Electric's EcoStruxure Power architecture.
