Schabus SHT 217 Water detector for pump control

Schabus Water Detector SHT 217

Manufacturer: Schabus
Designation: Water detector for pump control
Type: SHT 217
Alarm type: Water
Mounting type: Other
Display: Optical/acoustic
Operating voltage: 230 V
Height: 121 mm
Width: 57 mm
Depth: 38 mm

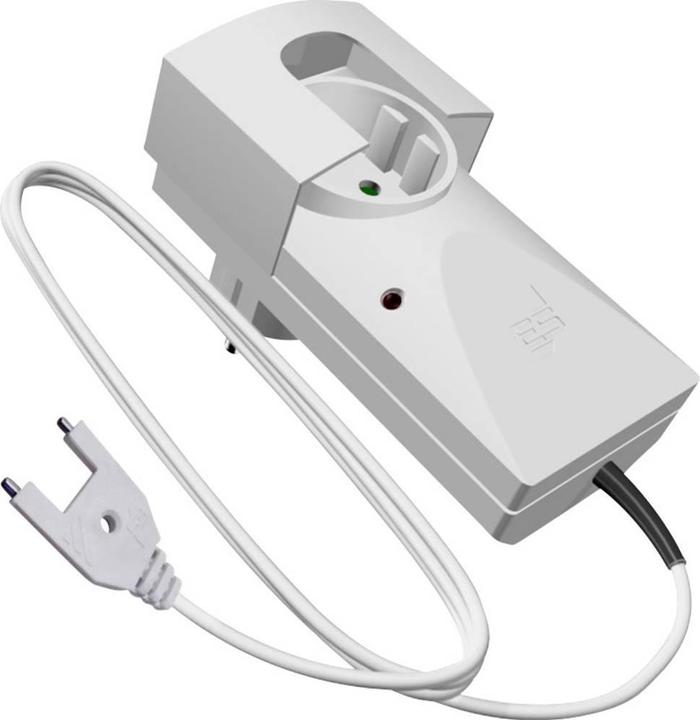

The SHT 217 water detector is a plug-and-play pump control device that activates a connected water pump when a certain water level is reached and turns it off again after a preset time. The pump's run-on time can be adjusted from 0 to 100 seconds using a continuously variable setting dial. An acoustic and optical warning indicates a change in water level.

Extension of sensor cable: If needed, you can extend the sensor cable up to 50 m with a cable (2x 0.14 mm²). You will need to cut the existing sensor cable and reconnect it with terminals.

Without acoustic alarm: The same device is available as the SHT 218 water detector without an acoustic alarm.

Use with non-conductive liquids: For other liquids such as heating oil, diesel, vegetable oil, lubricating oils, etc., you will need the SHT 227 device with a float switch.

Use of water sensor in pump sump (condensate): Use the SHT 227 with a mini float switch when the water sensor is used for cyclical operation.

Technical data:
Operating voltage: 230 V AC/50-60 Hz
Switching power: 3500 VA (2300 W)/16 A (10 A)
Power consumption: approx. 3 W
Sound pressure of buzzer: 80 dB (10 cm distance)
Run-on time: 0 to 100 s adjustable
Cable length sensor: extendable up to 50 m (with 2x 0.14 mm²)
Operating range: -15 °C/+40 °C
Protection class: IP 20
Cable length: 2.8 m 2x 0.14 mm²
Dimensions (HxWxD): 121x57x38 mm
EAN: 4044764001688.
