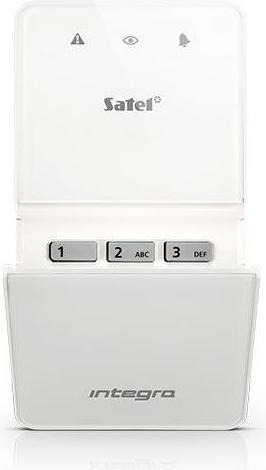

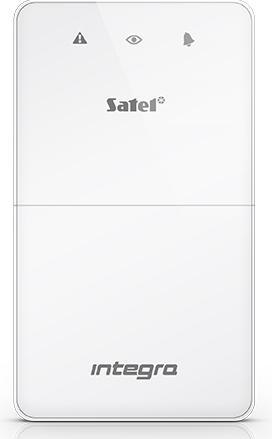

Satel Zone Keyboard Int-Sf-W

The keypad is designed to work with the signaling center, and its operation is based on microprocessor technology. Basic information is conveyed with the help of illuminated LEDs and sound signals.

Support: INTEGRA, INTEGRA Plus
Relay contact load at DC 24V voltage: max. 2 A
Selected functions: LED indicators showing the operating status of the unit.
Illumination color: White.
Warning signals: Attack, Fire, Help, called up via the keypad, controls a system zone.
Audible signaling of selected system events.
Access control function relay to control an electric lock, lock or electromagnetic door lock status control input.
Microswitch for keypad tamper detection.
Power supply: 12 V DC
Current consumption: max. 40 mA
Color: White
Operating temperature: -10 °C to 55 °C
Permissible relative humidity: < 93 %
Weight: 0.18 kg
Dimensions: 143 x 80 x 25 mm
Manufacturer / Brand: SATEL
Warranty: 2 years
Instructions: EN
CE Declaration of Conformity.
