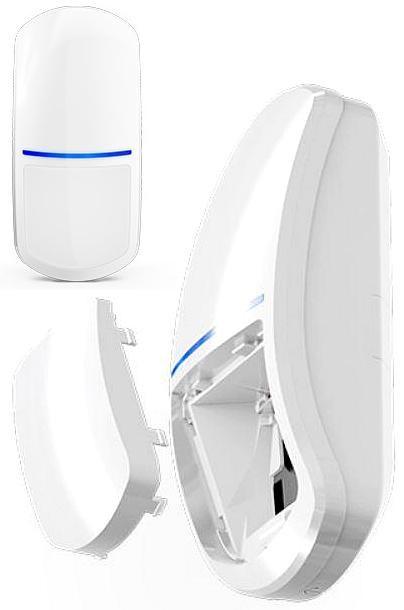

Satel SLIM-DUAL-LUNA motion detector Passive infrared (PIR) sensor/Microwave sensor White

Digital dual motion detector with LED lighting function. The detector comes with a special handle. Usage: Indoor. Pyro element: Dual. Sensor type: Passive IR (PIR) and microwave (MW). Recommended installation height: 2.4 m. Range: max. 20 x 24 m. Detection angle: 90°. Sensitivity setting: 1 of 16 sensitivity levels can be set for each sensor. Alarm output: NC, 2EOL / NC – setting with switches. Tamper output: ✔. LED display: Remote control for turning the LED display on/off and selecting the lighting color from 7 colors. Microwave frequency band: 24.125 GHz. Pet immunity: -. Anti-masking function: -. Violation alarm time: 2 s. Maximum output load: 40 mA / 24 V DC. Relay output 40 mA / 24 V DC. Tamper protection, NC. Digital temperature compensation: ✔. Detectable motion speed: 0.3 ... 3 m/s. Protection class (grades): EN 50131-2-4 Class 2. Environmental class EN 50130-5: II. Power supply: 12 V DC / 100 mA (max.). Operating temperature: -10 °C ... 55 °C. Color: White. Main features: The lighting function is performed by an LED diode. Possibility of remote control of the lighting by motion or activation of the lighting by motion. Compliance with standards: EN 50131-1, EN 50131-2-4, EN 50130-4, EN 50130-5. Digital detection algorithm with temperature compensation, ensuring high resistance to false alarms and parameter repetition. Tampering detection – opening the housing, tearing from the base. Remote control. Built-in parameter resistors 2EOL: 2 x 1.1 kΩ / 2 x 4.7 kΩ / 2 x 5.6 kΩ. Weight: 0.12 kg. Dimensions: 137 x 62 x 42 mm. Manufacturer / Brand: SATEL. Warranty: 5 years. CE declaration of conformity. Instructions for the installer.
