Satel INTEGRA 64 Plus

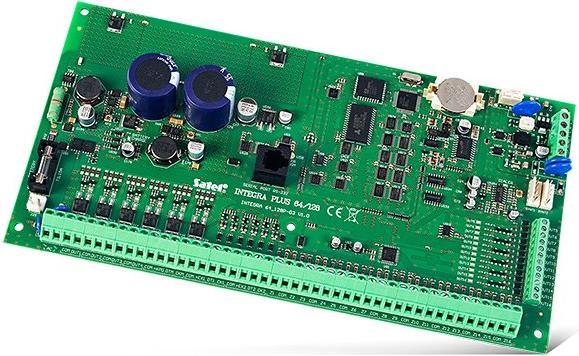

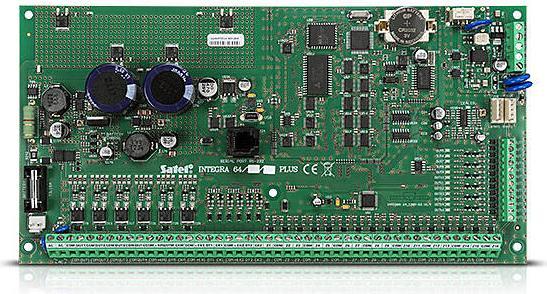

Satel INTEGRA 64 Plus mainboard of the alarm control panel, supporting 16 to 64 lines and outputs.

Thanks to its compliance with EN50131 Grade 3 requirements, the INTEGRA Plus series control panels are ideal for advanced security systems in locations exposed to a higher risk of burglary, such as banks, jewelry stores, and public buildings. They are characterized by enhanced functionality, allowing the panels to be used for access control or in building automation systems.

• Full compliance with EN50131 Grade 3 standards
• Built-in advanced 2 A + 1.5 A power supply with extended diagnostics
• Operation of up to 64 lines with the ability to configure the termination resistor and operate a 3EOL line
• USB port for PC configuration
• Ability to partition the system into 32 zones and 8 partitions
• Expansion up to 64 programmable outputs
• Communication buses for connecting control panels and expansion modules
• Built-in telephone dialer with functions for monitoring, voice notification, and remote control
• Operation of the alarm system via touchscreen control panels, LCD control panels, zone keypads, remote controls, and access cards, as well as remote access via PC or mobile phone
• 64 independent timers for automatic control
• Access control and home automation functions
• Storage of up to 5,631 events with printing capability
• Support for 192 + 8 + 1 users
• Firmware update capability via computer
• Option to not report the SATEL server error to the alarm control panel (INTEGRA firmware 1.16 or newer).
