Satel APT-200 Remote Control RF Wireless Security System, Intelligent Home Device Push Buttons

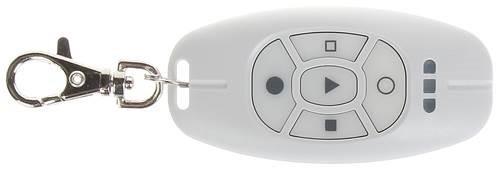

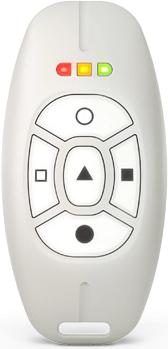

Satel APT-200 Bidirectional Radio Remote Control

The APT-200 remote control allows for the remote operation of alarm systems or building automation devices. It is designed for use in the bidirectional radio system ABAX 2/ABAX.

The device is equipped with 5 illuminated buttons, which can control up to 6 functions.

The confirmation of command reception by the radio base module is indicated both acoustically and visually. The remote control features a piezoelectric transducer (for acoustic signaling) and 3 LEDs, which can be assigned individual functions to inform about the system status.

Firmware updates for the APT-200 are performed remotely. In the ABAX 2 system, communication is encrypted according to the AES standard.

The remote control is powered by a CR2032 3 V battery and indicates a low battery level.

• Configurable button functions (up to 6 functions)
• Visual and acoustic confirmation of command reception by the radio base module
• Backlit buttons
• Compatible with:
• ABAX 2 radio base modules (ACU-220 and ACU-280) and the repeater ARU-200
• ABAX radio base modules (ACU-120, ACU-270, ACU-250, and ACU-100 (version min. 4.04)), the INTEGRA 128-WRL control panel, and the repeater ARU-100 - the required firmware version of the device should be checked in its description
• Radio range in open terrain:
• for ABAX 2: up to 1200 m (with ACU-220) / up to 600 m (with ACU-280)
• for ABAX: up to 150 m
• Remote firmware update
• Power supply: Battery: CR2032 3 V
• Option to replace the standard keypad with GKX-1 (with colored pictograms).
