Ruijie Wrl Access Point 5ghz

2402 Mbit/s
Ratings
BrandMore from Ruijie
Need a last-minute gift?Discover our instantly available digital vouchers
Delivered between 7.1.2026 and 9.1.2026
Supplied by
free shipping

Product details

Main features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Maximum data transfer rate: 3202 Mbit/s
  • Ethernet LAN data transfer rates: 10, 100, 1000 Mbit/s
  • Throughput data rate: 3202 Mbit/s
  • Frequency band: 2.4 - 5 GHz
  • Network standard: IEEE 802.3at
  • MIMO: Yes
  • MIMO type: Multi User MIMO
  • Maximum number of WLAN connections: 512
  • VLAN support: Yes

Connections and interfaces

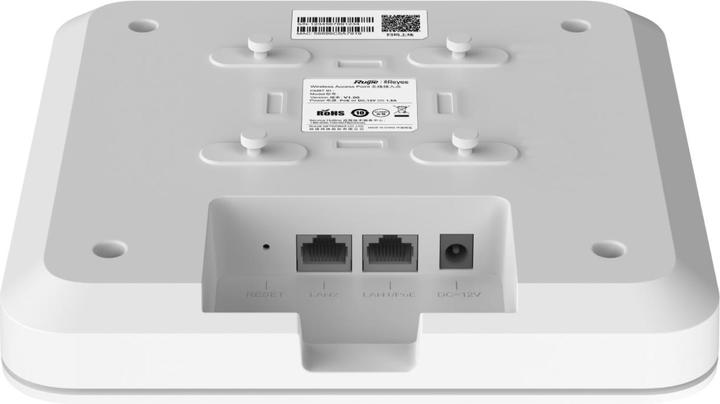

  • Number of Ethernet LAN connections (RJ-45): 2

Power

  • Power over Ethernet (PoE): Yes
  • AC input voltage: 12 V
  • Input current: 1.5 A
  • Power consumption (standard operation): 25.4 W

Design

  • Placement: Ceiling, hallway, wall
  • Product colour: White
  • LED indicators: Yes

Antenna

  • Antenna type: Internal

Weight and dimensions

  • Width: 220 mm
  • Depth: 220 mm
  • Height: 35 mm
  • Weight: 1.05 kg

Operating conditions

  • Operating temperature: 0 - 40 °C.

Key specifications

Area of application
Business, Indoor
Operating modes
Access point
Wi-Fi standard
Wi-Fi 6 / 802.11ax
PoE Standard
802.3at (PoE+)
Wi-Fi frequency band
Dual band
Max. port speed
2500 Mbit/s
Number of RJ45/LAN ports
2
Item number
37554190

General information

Manufacturer
Ruijie
Category
Access points
Manufacturer no.
RG-RAP2260(E)
Release date
15.8.2023

Access point properties

Operating modes
Access point
Max. number of clients
512x
Number of antennas
2x
Antenna gain
3 dB
Number of RJ45/LAN ports
2
Max. port speed
2500 Mbit/s
Access Point Functions
Seamless roaming

Wi-Fi standard

Wi-Fi standard
Wi-Fi 6 / 802.11ax
6 GHz transmission rate
1170 Mbit/s
5 GHz transfer rate
2402 Mbit/s
2.4 GHz transfer rate
800 Mbit/s
Wi-Fi frequency band
Dual band
Wi-Fi encryption
WPA-PSK, WPA2-AES

Application range

Area of application
Business, Indoor
Installation place
Ceiling

Power supply

Power supply
PoE
PoE Standard
802.3at (PoE+)
Power consumption
25.40 W

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
22 cm
Width
22 cm
Height
3.50 cm
Weight
1050 g
