Ruijie RG-RAP6260(G) - Reyee access point

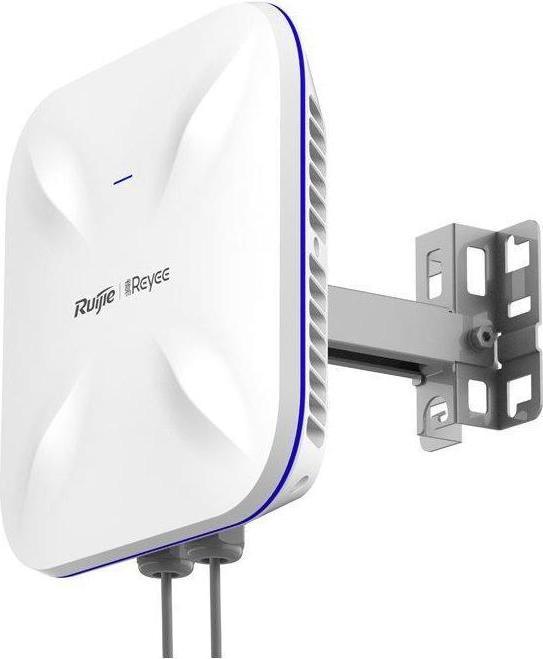

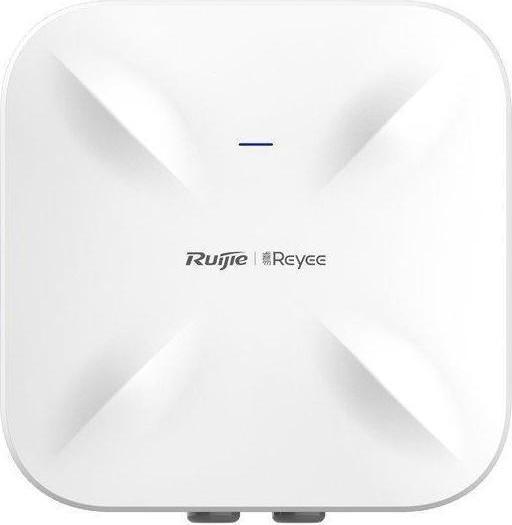

RG-RAP6260(G) is a ceiling and wall mounted wireless Wi-Fi 6 access point from Ruijie Networks with full roaming support for seamless transition between access points. The device is equipped with a Gigabit port that supports 802.3at PoE power, a Gigabit SFP port for optical connections up to 20 km away, and a dual band Wi-Fi 6 2x2 MU-MIMO radio with modulation speeds of 574 Mbps in the 2.4 GHz band and 1201 Mbps in the 5 GHz band.

Key benefits:

• Easily expandable Wi-Fi with Reyee Mesh
• Gigabit Ethernet
• SFP interface
• Support for MU-MIMO, roaming, beamforming, OFDMA, and other technologies
• High throughput thanks to Wi-Fi 6 and 2x2 MIMO in both bands
• Outdoor design with IP68 protection rating
• Power supply via 802.3at PoE
• Management via Ruijie Reyee Cloud or web interface

Packaging contents:

• Device
• Bracket and mounting plate
• Screws
• Cable glands
• (2) metal brackets

Technical parameters:
Wireless features:

• Wireless frequency: 2.4 + 5 GHz (dual band)
• Wi-Fi standards: 802.11ax, 802.11ac, 802.11ac - wave 2, 802.11n, 802.11a, 802.11b/g
• MU-MIMO: Yes
• Transmission speed - 5 GHz [Mb/s]: 1201
• Transmission speed - 2.4 GHz [Mb/s]: 574
• Tx power 2.4 GHz [dBm]: 26
• Tx power 5 GHz [dBm]: 25
• Security: WPA-PSK/WPA2-PSK
• 2.4 GHz MIMO: 2 x 2
• 5 GHz MIMO: 2 x 2
• Type of antenna: Built-in
• Internal antennas: 4
• Roaming: Yes
• Antenna gain [dBi]: 4, 6

Connectors and Interfaces:

• LAN speed: (1) 10/100/1000 Mbps
• Gigabit LAN: Yes
• Optical interfaces: (1) 100/1000 Mbps

Power:

• Power over Ethernet: 802.3at
• PoE type: PoE-In (only)
• Max. power consumption [W]: 17

Physical characteristics:

• Protection class: IP68
• Purpose: Outdoor
• Buttons: Reset
• Operating temperature [°C]: -40 up to 65
• Weight [g]: 1350
• Width [mm]: 298
• Height [mm]: 65
• Depth [mm]: 298

Software:

• Operating mode: Access Point
• Default IP address: Dynamic from DHCP, 10.44.77.253
• Default login and password: Set by the user at the first startup.
