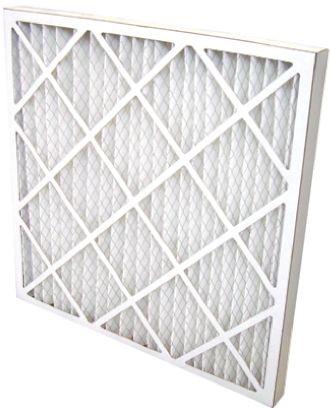

Rs Pro Std pleated panel air filter 20x20x2in

Filter type: Folded filter panels
Nominal dimensions: 20 x 20 x 2 inches
Absolute dimensions: 495 x 495 x 45 mm
Filter MERV class: 8
Filter class: G4
Maximum air flow: 1764 m³/h
Initial pressure drop: 47 Pa
Final pressure loss: 250 Pa
Color: White
Housing material: AquaKote
Material: Intrepid
Absolute depth: 45 mm

RS folded standard filter panels. The RS folded filter panels are renewable filters with high capacity that allow for a filtration level above the basic level or pre-filtration in HVAC systems. This product is made from the patented Kimberly Clark Intrepid® filter medium, which enables consistent filtration throughout its service life. These folded standard filters are constructed by gluing a pleat pack of the filter medium into an AquaKote® frame. The AquaKote® frame has superior tear strength when wet and excellent tear strength when dry. Additionally, it is made from a renewable material. The Kimberly Clark filter medium features a graded density for uniform dirt capture, resulting in higher dust holding capacity and longer service life. This filter medium is water-repellent and, due to its special electrostatic charge, provides consistent filtration performance, an excellent balance between efficiency and particle size, as well as low pressure drop, and it is made from continuous fibers that do not shed.
