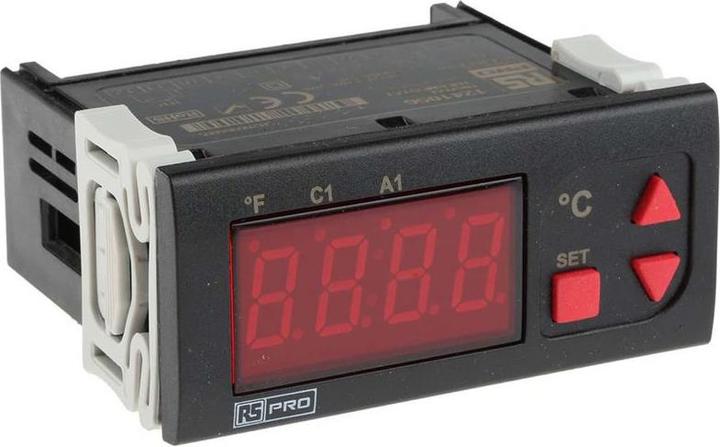

Rs Pro On/Off Temp Controller, 35x77, 230V ac

Entry type: NTC
Output type: Relay
Number of inputs: 1
Number of outputs: 2
Supply voltage: 230 V AC
Temperature range: –60 to +150 °C
Size: 77 x 35 mm
Minimum operating temperature: 0 °C
Maximum operating temperature: +50 °C
Panel depth: 61 mm
Mounting type: Panel mount

On/Off thermostat from RS Pro – 2 outputs. The On/Off thermostats from RS Pro are designed for use with NTC sensors. The thermostats are quick to install and easy to configure, featuring a large display for good visibility in a compact design. Due to their construction and user-friendliness, RS Pro thermostats are ideal for use in industrial and commercial applications.

Features and benefits:

• Size 35 x 77 mm
• On/Off control
• Relay output for cooling or heating control
• Alarm relay
• Simple NTC sensor input
• Range from –60 °C to +150 °C
• Setting for sensor failure, output status can be set to On, Off, or Pulse
• Offset setting for sensor input
• Selectable heating or cooling control
• Selectable independent deviation and band alarm types
• Unit display in 0000 or 000,0
• Temperature unit °C or °F
• CE certified.
