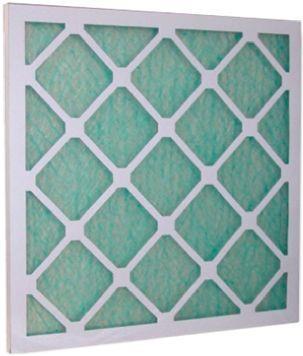

Rs Pro Glass fibre panel air filter 16x20x1in

Filter type = Panel
Dimensions nom. = 16 x 20 x 1inch
Dimensions absolute = 394 x 495 x 20mm
Filter class = G3
Air flow rate max = 1070m³/h
Initial pressure drop = 18Pa
Final pressure drop = 150Pa
Color = Green
Housing material = AquaKote
Material = Glass fiber
Width absolute = 495mm

Eurovent approval. RS Glass Fiber Filter Plates. RS fiberglass filter panels are renewable and provide a basic level of filtration or pre-filtration in HEVAC systems. These fiberglass filters are constructed by bonding a fiberglass media into a water-repellent Aquakote® frame. The Aquakote® frame has superior tear strength when wet and excellent tear resistance when dry. In addition, it is made of renewable materials. The fiberglass filter media is made from recycled products and has a guaranteed density to provide excellent deep absorption of filtered particles. This filter media has increased adhesion to increase efficiency and is decidedly cost effective.
