RF-Elements HG3-TP-S50 - 14.3 dBi - 5.18 - 6.4 GHz - 50° - 50° - Horn antenna - TwistPort

14.30 dB
Ratings
BrandMore from RF-Elements
Currently out of stock

Product details

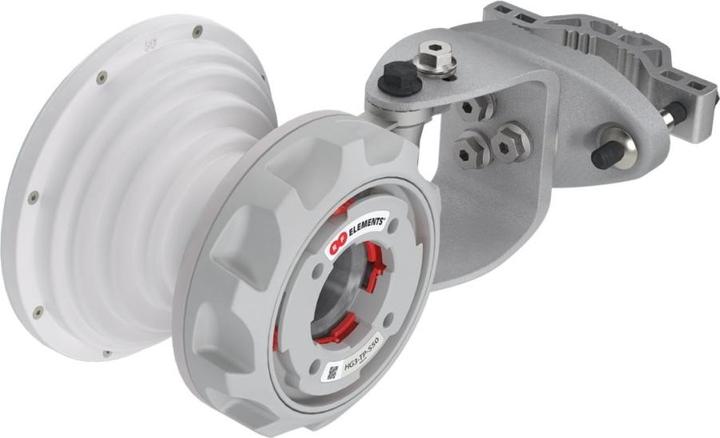

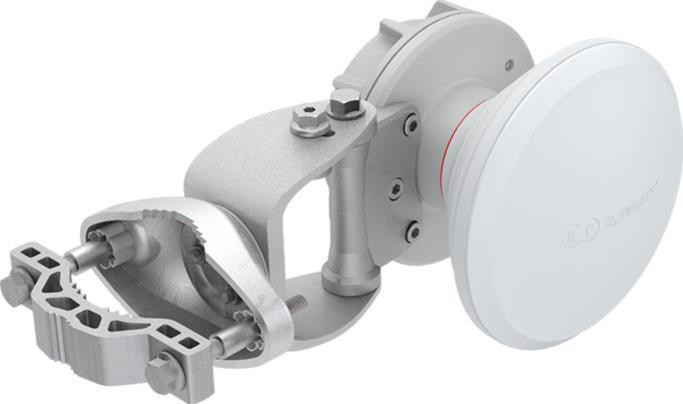

RF Elements HG3-TP-S50 - Symmetrical Horn-TP Antenna Gen2

Horn antenna with TwistPort connector. Symmetrical horn antennas feature a symmetrical radiation pattern without side lobes. They offer excellent noise suppression and the highest scalability, making them perfect for high-density AP clusters and dense radio co-locations.

The Gen2 symmetrical horn-TP antennas are equipped with our groundbreaking TwistPort connector, a patented quick-release connection. TwistPort is virtually lossless and revolutionary easy to use.

The Gen2 symmetrical horn-TP antennas boast several enhancements in RF performance and industrial design, including a visually lighter antenna body and a significantly improved antenna mount. The radome is made from durable material, and the entire range of Gen2 antennas uses only two different radome sizes.

Antenna connection: TwistPort - Quick-release connector
Antenna type: Horn
Materials: UV-resistant ABS plastic, polycarbonate, polypropylene, aluminum, stainless steel
Environment: IP55
Pole mounting diameter: 30-90 mm
Temperature: -30°C to +55°C
Wind resistance: 160 km/h
Wind load: 22 N at 160 km/h
Mechanical tilt: +/-25°
Weight: 2.2 kg - Single unit including packaging
Dimensions: 30.5 x 23.9 x 18.3 cm - Single unit including packaging

Performance
Frequency range: 5180 - 6400 MHz
Gain: 14.3 dBi
Azimuth beamwidth -3 dB: H 33°/V 33°
Elevation beamwidth -3 dB: H 33°/V 33°
Azimuth beamwidth -6 dB: H 50°/V 50°
Elevation beamwidth -6 dB: H 50°/V 50°
Front-to-back ratio: 33 dB.

Key specifications

Diameter
31.20 cm
Item number
15747705

General information

Manufacturer
RF-Elements
Category
Dishes + Antennas
Manufacturer no.
HG3-TP-S50
Release date
27.4.2021

Colour

Colour
White
Exact colour description
White

Material

Material group
Plastic
Material
Acrylonitrile Butadiene Styrene (ABS), Aluminium, Polypropylene (PP), Stainless steel

Antenna properties

Application
Outdoor
Antenna gain
14.30 dB
Installation place
Rod

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece(s)

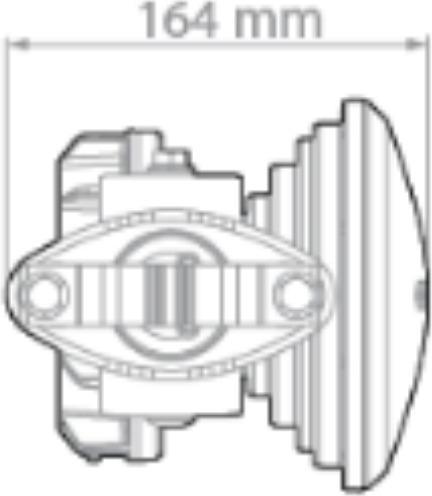

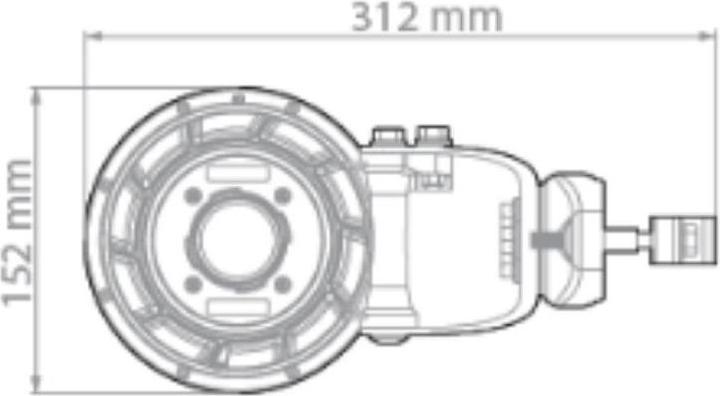

Product dimensions

Depth
16.40 cm
Width
31.20 cm
Height
15.20 cm
Diameter
31.20 cm
Weight
1400 g
