RF-Elements HG3-TP-S40 - 16.2 dBi - 5.18 - 6.4 GHz - 40° - 40° - Horn antenna - TwistPort
16.20 dBMore than 10 items in stock at supplier
Product details

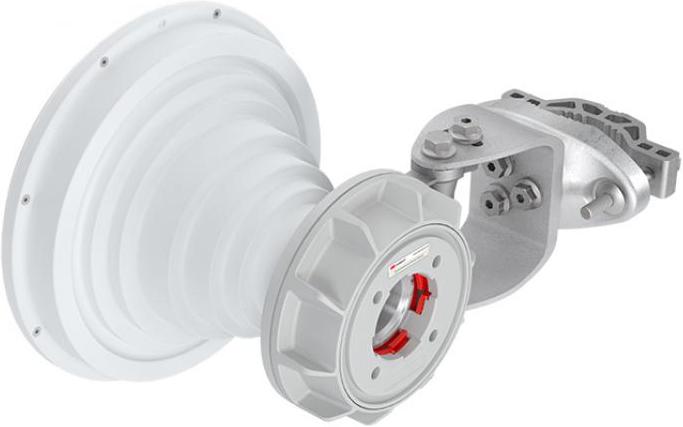

RF Elements HG3-TP-S40 - Symmetrical Horn-TP Antenna Gen2
Horn antenna with TwistPort connector. Symmetrical horn antennas feature a symmetrical radiation pattern without side lobes. They provide excellent noise suppression and the highest scalability, making them perfect for high-density AP clusters and dense radio co-locations.
The symmetrical Horn-TP Antennas Gen2 are equipped with our groundbreaking TwistPort connector, a patented quick-release connection. TwistPort is virtually lossless and revolutionary easy to use.
The symmetrical Horn-TP Antennas Gen2 are characterized by several improvements in RF performance and industrial design, including a visually lighter antenna body and a significantly enhanced antenna mount. The radome is made from durable material, and the entire range of Gen2 antennas uses only two different radome sizes.

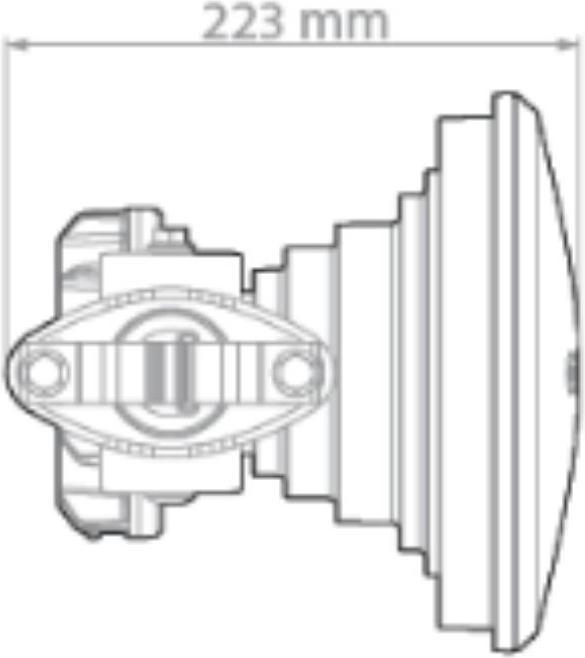

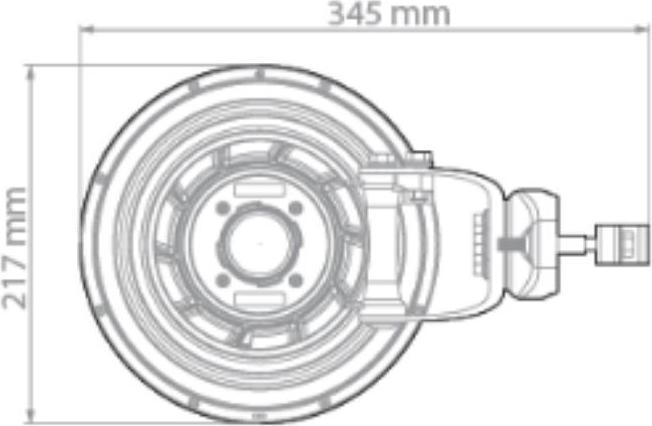

Antenna connection: TwistPort - quick-release connector. Antenna type: Horn. Materials: UV-resistant ABS plastic, polycarbonate, polypropylene, aluminum, stainless steel. Environment: IP55. Mast mounting diameter: 30-90 mm. Temperature: -30°C to +55°C. Wind resistance: 160 km/h. Wind load: 44 N at 160 km/h. Mechanical tilt: +/-25°. Weight: 3.2 kg - single unit including packaging. Dimensions: 41.2 x 27.7 x 23.4 cm - single unit including packaging.
Performance: Frequency range: 5180 - 6400 MHz. Gain: 16.2 dBi. Azimuth beamwidth -3 dB: H 27°/V 27°. Elevation beamwidth -3 dB: H 27°/V 27°. Azimuth beamwidth -6 dB: H 40°/V 40°. Elevation beamwidth -6 dB: H 40°/V 40°. Front-to-back ratio: 35 dB.
