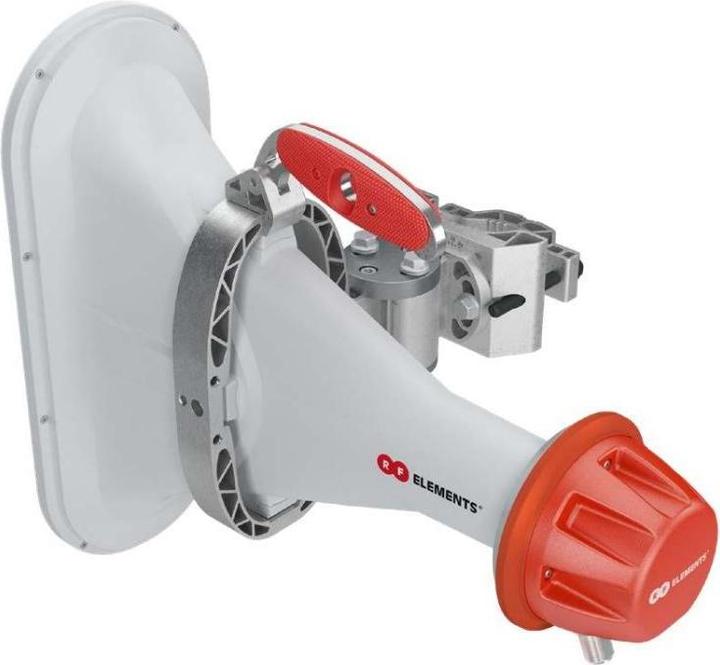

AH90-CC - 90° Asymmetric Horn Antenna

The radiation pattern of the asymmetric 90° horn CC antenna is 90° wide in the azimuth plane and 25° in elevation. The increased gain and excellent radiation efficiency significantly enhance coverage planning capabilities.

The asymmetric 90° horn CC antenna outperforms traditional patch arrays of sector antennas due to the high stability of the radiation pattern across the entire operating bandwidth. Outstanding noise suppression and precision of the radiation pattern make this antenna suitable for high-density access point clusters and closely spaced locations. The asymmetric 90° horn CC features a pair of N-connectors, allowing for a wide range of radio connections.

Technical Specifications

• Radio connection: 2x N-connector, socket connector
• Type of antenna: Horn
• Materials: UV-resistant ABS plastic, polycarbonate, HDPE, aluminum, stainless steel
• Environmental conditions: IP55
• Mast diameter: 40-80 mm, recommended as close to 80 mm as possible
• Temperature: -35°C to +60°C
• Wind resistance: 160 km/h
• Wind load: 64/90 N - Front/Side at 160 km/h
• Effective projected area: 525/744 cm² - Front/Side
• Mechanical adjustment: ± 20° elevation, ± 20° azimuth
• Weight: 5.3 kg
• Packaging dimensions: 510 x 420 x 175 mm

Performance

• Frequency range: 5180 - 6000 MHz
• Gain: 16 dBi
• Azimuthal radiation width -3 dB: H 60°/V 60°
• Elevation radiation width -3 dB: H 16°/V 16°
• Azimuthal radiation width -6 dB: H 90°/V 90°
• Elevation radiation width -6 dB: H 25°/V 25°
• Radiation efficiency: 90 %
• Front-to-back ratio: 30 dB
• VSWR max. 5180-6000 MHz: 1.8
• Polarization: Dual linear H + V
• Impedance: 50 Ohm.
