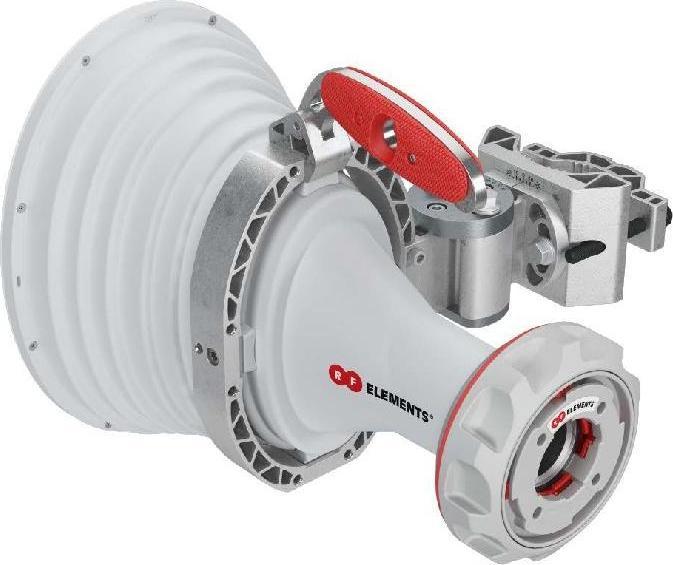

RF-Elements AH2030-TP - 30° Asymmetrical Beam Antenna

AH2030-TP - 30° Asymmetrical Beam Antenna

The 30° asymmetrical horn TP antenna features high gain and zero side lobes, resulting in very high beam efficiency. Its radiation pattern is wide in the azimuth and narrow in the elevation plane.

The stability of gain, radiation pattern, and resulting coverage is excellent across the entire useful bandwidth. These properties, along with outstanding noise rejection, make the 30° asymmetrical horn TP antenna ideal for high customer density and co-location sites. The TwistPort™ - rf element's revolutionary patent-pending twist-and-lock waveguide port allows connectivity to a wide range of third-party radios using TwistPort™ adaptors.

The BeamSwitch™ feature enables the antenna to be mounted with a 90° rotation by swapping the position of the handle and the bracket. The AH2030-TP can thus provide a 20° azimuth and 30° elevation beamwidth option. The extruded aluminum ring enhances the structural strength of the antenna attachment and facilitates easy and fast flipping of the BeamSwitch™.

Technical Data

• Antenna connection: TwistPort™ - Quick locking waveguide port
• Antenna type: Horn
• Materials: UV resistant ABS plastic, polycarbonate, HDPE, aluminum, stainless steel
• Environmental: IP55
• Pole mounting diameter: 40-80 mm (recommended as close to 80 mm as possible)
• Temperature: -35°C to +60°C (-31°F to +140°F)
• Wind survival: 160 km/hour
• Wind loading: 67 N at 160 km/h
• Mechanical adjustment: ±20° elevation, ±20° azimuth
• Weight: 4.2 kg/9.2 lbs
• Dimensions: 483 x 334 x 235 mm / 19.0 x 13.1 x 9.2 inch

Performance

• Frequency range: 5180 - 6000 MHz
• Gain: 20.5 dBi
• Azimuth beam width -3 dB: H 21° / V 21°
• Elevation beam width -3 dB: H 15° / V 15°
• Azimuth beam width -6 dB: H 30° / V 30°
• Elevation beam width -6 dB: H 20° / V 20°
• Beam efficiency: 95%
• Front-to-back ratio: 35 dB.
