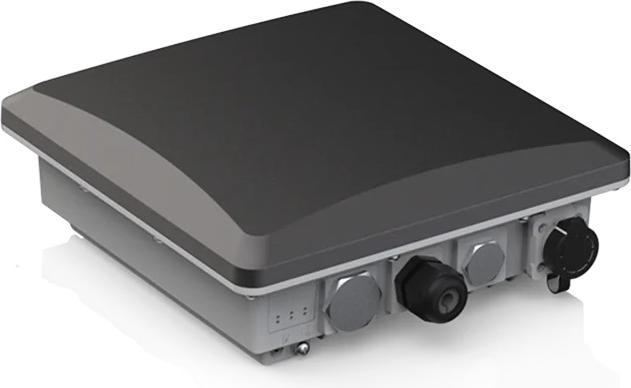

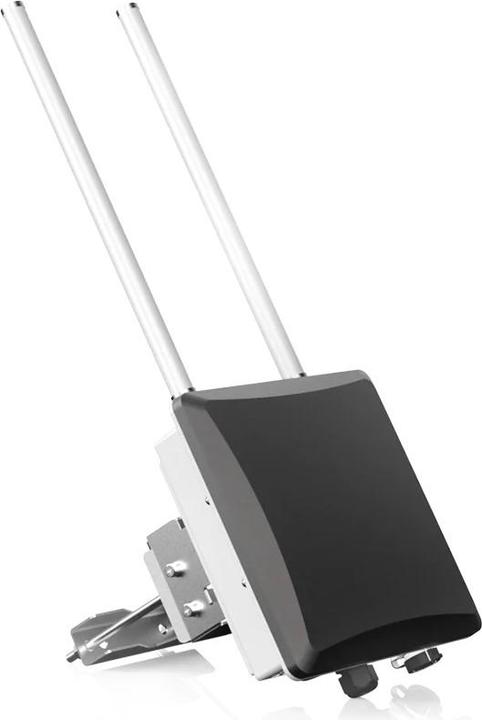

RAK Wireless WisGate Edge Pro LoRaWAN LTE Multi-Channel Gateway

The WisGate Edge Pro Version 2 Outdoor is the latest RAK gateway for LoRaWAN from the WisGate Edge series. It comes with the new WisGateOS 2, which offers all existing functions but adds a new design, many options, and tooltips. It includes extension add-ons so you can continue to add and manage functions. The WisGate Edge Pro Version 2 is ideal for large-scale commercial IoT deployments. With its industrial-grade components, it achieves a high standard of reliability. The gateway supports up to 16 LoRa channels, with Ethernet, Wi-Fi, and cellular connectivity. There is an optional dedicated port for various power supply options and full integration with the off-grid power supply solution RAK Battery Plus. The gateway's new housing design allows for the placement of the LTE, Wi-Fi, and GPS antennas inside the housing.

Recommended accessories:
2x RAK 3dBi fiberglass LoRa antenna 860-930MHz N-Type Male
or
2x RAK 5dBi fiberglass LoRa antenna 863-870MHz N-Type Male

Features:
LoRaWAN v1.0.3 protocol
Up to 16 LoRa channels
Ethernet, Wi-Fi, and cellular connectivity
IP67 industrial-grade housing with cable glands
PoE (802.3af) + overvoltage protection
GPS
Supports DC 12V or Battery Plus for off-grid systems
Internal antenna for Wi-Fi, GPS, and LTE, external antenna for LoRa
MQTT v3.1 bridging with TLS encryption
WisGate OS 2

Technical details:
Manufacturer: RAK Wireless
Manufacturer SKU: 715100
Model: RAK7289CV2
LoRa Band: EU868MHz
LTE Module: EG69-E
Channels: 16
Connection: 2.4GHz Wi-Fi, Ethernet, LTE
Voltage: 12V DC
Dimension: 240 x 240 x 90mm
Weight: 4.4kg

Scope of delivery:
1x WisGate Edge Pro LoRaWAN Multi-Channel Gateway
1x Ethernet cable gland
1x POE injector
1x mounting brackets
1x screw set.
