WiSector PRO M3-90-16HV - 3.3 - 3.8 GHz Sector Antenna for Cambium PMP 450

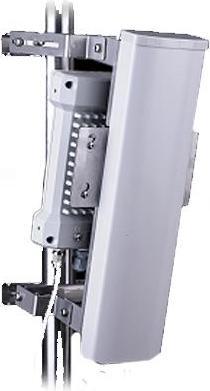

The WiSector PRO M3-90-16HV for Cambium PMP 450 is a dual-polarity sector antenna. It features a dual-polarized H and V antenna with a frequency range of 3.3 - 3.8 GHz and a beamwidth of 90 degrees. The antenna is designed for establishing medium-range outdoor connections. The set includes a robust mounting system made of high-quality stainless steel, intended for PMP450 Cambium models. The WiSector comes with two SMA connectors located at the bottom of the housing. The connectors are surrounded by a special collar that protects them from water. Thanks to the PTFE material used for the circuit board, the WiSector PRO M3-90-16HV has better performance characteristics than other antennas available on the market.

Features:

• 2x 16 dBi gain
• H and V polarization for the frequency of 3300 - 3800 MHz
• 2 SMA connectors
• Large, ergonomic, and voluminous WiSector PRO housing for the installation of radio equipment
• Waterproof outdoor housing
• Designed for all weather conditions

Applications:

• Point-to-Multipoint connections
• Hotspot

Compatible with:

• Cambium Networks - PMP 450

Electrical Properties:

• Frequency: 3.3 - 3.8 GHz
• Gain: 16 dBi
• VSWR:
• Beamwidth: 90°/9°
• Polarization: H and V
• Cross-polar isolation
• Front-to-Back: > 25 dB
• Isolation between ports: > 32 dB
• Impedance: 50 Ohm
• Max input power: 50 W
• Lightning protection: No
• DC grounding: No

Mechanical Properties:

• Dimensions: 12 x 44.5 x 5.5 cm
• Weight: 3.5 kg
• Connector: 2 x SMA connectors
• Material: PET
• Waterproof rating: IP67
• Operating temperature: from -40 °C to +70 °C.
