Quwireless S9HV.65.8NM - QuSector 9HV-65-8 Wi-Fi 6E 8x Nm

QuSector 9HV-65-8 Wi-Fi 6E offers a 65-degree, 8 dBi (2.4 GHz) and 9 dBi (5 GHz-7 GHz) gain signal. It is a perfect indoor and outdoor device for industrial installations.

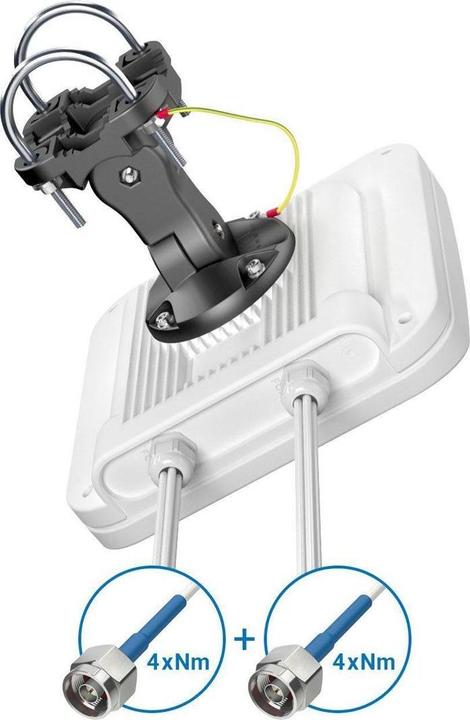

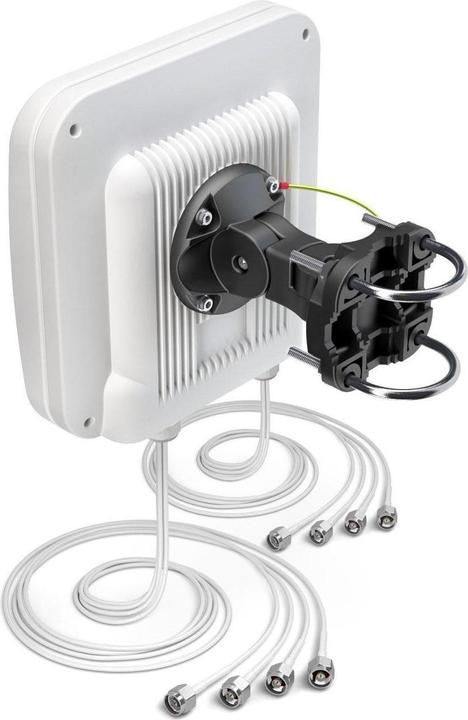

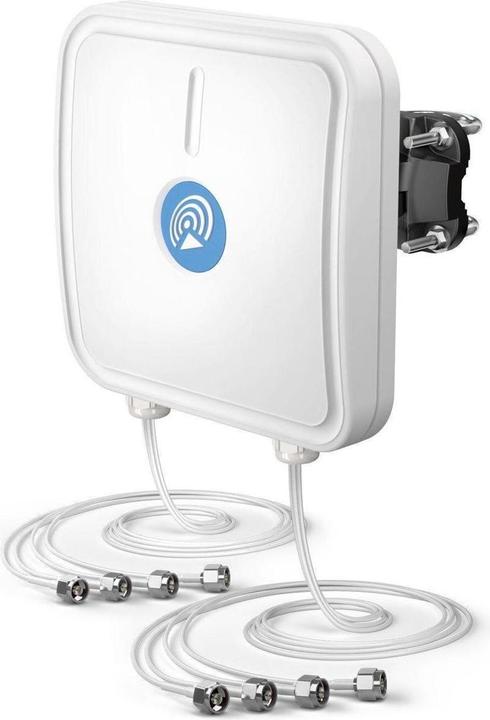

The QuSector 9HV-65-8 is a simultaneous dual-band, horizontal and vertical polarization, MIMO 8x8 panel antenna. It operates simultaneously at 2.4 GHz with 8 dBi gain and at 5 GHz-7 GHz with 9 dBi gain. Due to its moderate gain, it can be used over short to medium distances, for example, for hotspots in schools, stadiums, offices, or public spaces. It is a future-proof solution with Wi-Fi 6E and Wi-Fi 7 support. The high-quality injection-molded housing allows for indoor use and IP67 outdoor applications. The wide frequency range (2.4-2.5 GHz and 5-7.125 GHz) helps find the suitable frequency for optimal operation. It is primarily designed for special access points that operate in systems where two bands (frequencies) are duplexed for a single antenna connection. The antenna is available in three configurations: with 8 x 70 cm cables terminated with NM, RPSMA, RPTNC.

Wi-Fi Specification
Frequency

• 2.4 - 2.5 GHz
• 5.0 - 7.125 GHz

Gain

• 2.4 - 2.5 GHz: 8 dBi
• 5.0 - 7.125 GHz: 9 dBi

VSWR

• < 1.80

Beamwidth

• 2.4 - 2.5 GHz - 65°/65°
• 5 - 7.125 GHz - 60°/60°

Polarization

• Horizontal
• Vertical

Impedance

• 50 Ω

Isolation between ports

• 2.4 - 2.5 GHz: > 33 dB

Front-to-Back

• 2.4 - 2.5 GHz: 20 dB
• 4.9 - 6 GHz: 25 dB

Max Input Power

• 50 W

DC Grounding

• Yes

Mechanical Specifications
Material

• ABS

Connectors

• 8 x NM

Outer Dimensions

• 16.5 x 16.5 x 4.5 cm
• 6.5 x 6.5 x 1.77 inch

Weight

• 0.9 kg

Operating Temperature

• -40 °C to +80 °C
• -40 °F to 176 °F

Mounting Kit
Material

• Galvanized

Weight

• 0.3 kg

Mounting Location

• Mast

Mast Diameter

• 40-60 mm
• 0.98-2.36 inch.
