Quwireless S9HV.65.6NM - QuSector 9HV-65-6 Wi-Fi 6E 6x Nm

QuSector 9HV-65-6 offers a 65 degrees, 8dBi (2.4GHz) undamp; 9dBi (5GHz+7GHz) gain signal. It is a perfect indoor and outdoor device for industrial installations.

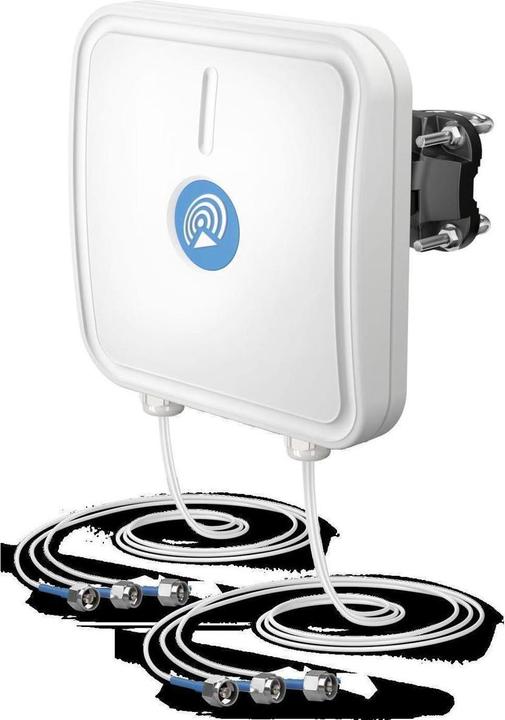

QuSector 9HV-65-6 Wi-Fi 6E is a concurrent triple band, Hundamp;V polarity, panel antenna. It simultaneously operates at 2.4GHz with 8dBi gain and at 5GHz+7GHz with 9dBi gain. Due to its medium gain, it can be used on short or medium distances, for example for hotspots in schools, stadiums, offices or public places. It is a futureproof solution with Wi-Fi 6E and Wi-Fi 7 support. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. Wide frequency range (2.4-2.5GHz undamp; 5.0-7.125GHz) helps to find suitable frequency for the most effective operation. It is designed to be applied mainly to special access points working in the systems where two bands (frequencies) are diplexed for one antenna connector. The antenna comes in four configurations: with 6*70cm (28inch) cables terminated with Nm, RPSMA, RPTNC connectors. QuSector 9HV-65-6 was designed to be a perfect match for your access point.

Wi-Fi SPECIFICATION
FREQUENCY

• 2.4 - 2.5GHz
• 5.0 - 7.125 GHz

GAIN

• 2.4 - 2.5 GHz: 8 dBi
• 5.0 - 7.125 GHz: 9 dBi

VSWR

• undlt; 2.00

BEAMWIDTH

• 2.4 - 2.5 GHz - 65°/65°
• 5 - 7.125 GHz - 60°/60°

POLARIZATION

• Horizontal
• Vertical

IMPEDANCE

• 50 Ω

SEPARATION BETWEEN CONNECTORS

• undgt; 33dB

FRONT-TO-BACK

• 2.4 - 2.5 GHz: 20dB
• 4.9 - 6 GHz: 25dB

MAX INPUT POWER

• 50W

DC GROUND

• Yes

MECHANICAL SPECIFICATION
MATERIAL

• ABS

CONNECTOR

• 6xNM

OUTER DIMENSIONS

• 16.5 x 16.5 x 4.5 cm
• 6.5 x 6.5 x 1.77 inch

WEIGHT

• 0.9 kg

OPERATING TEMPERATURE

• -40°C to +80°C
• -40°F to 176°F

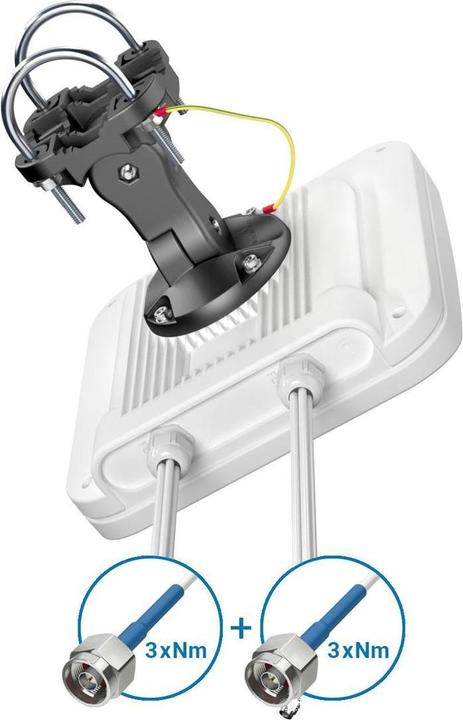

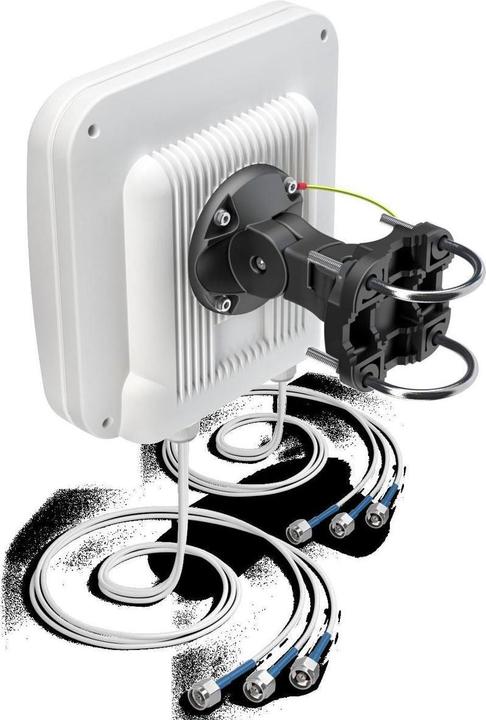

MOUNTING KIT
MATERIAL

• Galvanized

WEIGHT

• 0.3kg

MOUNTING PLACE

• Mast

MAST DIAMETER

• 40-60 mm
• 0.98-2.36 inch.
