Quwireless S15V.35.6RS - QuSector 15V-35-6 Wi-Fi 6E 6x RPSMA

QuSector 15V-35-6 offers a 35 degrees, 11dBi (2.4GHz) undamp; 15dBi (5+7GHz) signal gain. It is a perfect indoor and outdoor device for industrial installations.

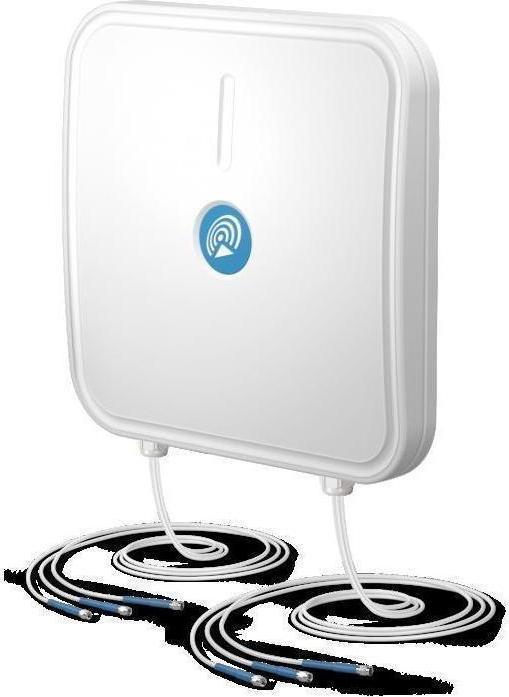

QuSector 15V-35-6 Wi-Fi 6E is a concurrent triple band, Vertical polarity, panel antenna. It operates at 2.4GHz with 11dBi gain and at 5GHz+7GHz with 15dBi gain. Its main purpose is to build small cells in high-density environments such as stadiums, lecture halls and concert halls. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. Wide frequency range (2.4-2.5GHz undamp; 5.0-7.125GHz) helps to find suitable frequency for the most effective operation. The antenna comes with 6*70cm (28inch) cables terminated with RPSMA, RPTNC or Nm connectors.

Wi-Fi SPECIFICATION
FREQUENCY

• 2.4 - 2.5 GHz
• 5.0 - 7.125GHz

GAIN

• 2.4 - 2.5 GHz: 11dBi
• 5.0 - 7.125 GHz: 15dBi

VSWR

• undlt; 2.00

BEAMWIDTH

• 2.4 - 2.5 GHz: 80°/40°
• 5.0 - 7.125GHz: 35°/25°

POLARIZATION

• Vertical

IMPEDANCE

• 50 Ω

SEPARATION BETWEEN CONNECTORS

• undgt; 35dB

FRONT-TO-BACK

• undgt; 25dB

MAX INPUT POWER

• 50W

DC GROUND

• Yes

MECHANICAL SPECIFICATION
MATERIAL

• ABS

CONNECTOR

• 6xRPSMA

OUTER DIMENSIONS

• 29.2 x 48.6 x 10.6 cm
• 11.5 x 19.13 x 4.17 inch

WEIGHT

• 2.5 kg

OPERATING TEMPERATURE

• -40°C to +80°C
• -40°F to 176°F

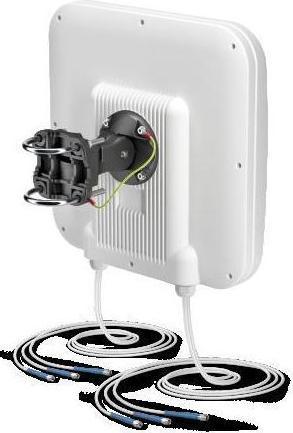

MOUNTING KIT
DIMENSIONS

• 9.9 x 10.5 x 14.8 cm
• 3.9 x 4.13 x 5.83 inch

REGULATION RANGE

• +/- 30°

MAST DIAMETER RANGE

• 25 - 60mm
• 0.98-2.36 inch

MATERIAL

• Polyamide with fiberglass + galvanized steel U-Bolts

WEIGHT

• 0.87kg

MOUNTING PLACE

• Wall or ceiling or mast.
