Quwireless S12HV.30.3RT - QuSector 12HV-30-3 3x RPTNC

QuSector 12HV-30-3 offers a 30 degrees, 12dBi gain signal with two RP-SMA 2.4GHz connectors. It is a perfect indoor and outdoor device for industrial installations.

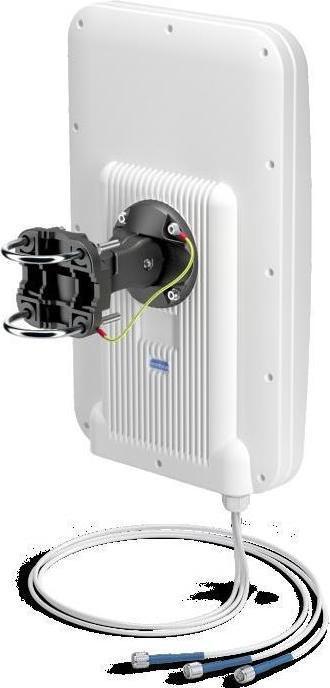

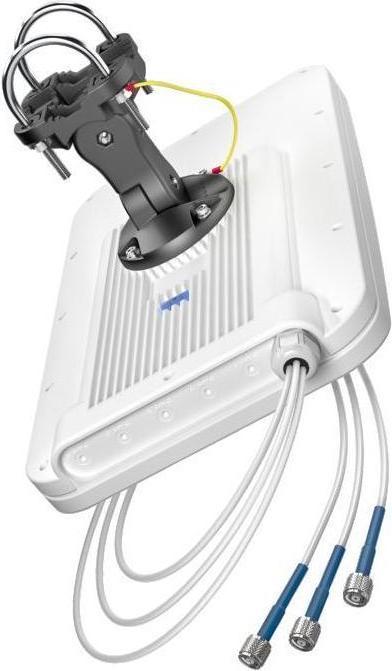

QuSector 12HV-30-3 is a single band, Hundamp;V polarity, MIMO 3x3 panel antenna. Two connectors operate at 2.4GHz with 12dBi gain. Due to its medium gain, it can be used on short or medium distances, for example for hotspots in schools, stadiums, offices or public places. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. The antenna comes with 3*70cm (28inch) cables terminated with Nm, RPSMA or RPTNC connectors. QuSector 12HV-30-3 was designed to be a perfect match for your access point.

Wi-Fi SPECIFICATION
FREQUENCY

• 2.4 - 2.5GHz
• 5.1 - 5.9GHz

GAIN

• 12 dBi

VSWR

• undlt; 2.00

BEAMWIDTH

• 35°/35°

POLARIZATION

• Horizontal
• Vertical

IMPEDANCE

• 50 Ω

SEPARATION BETWEEN CONNECTORS

• undgt;25dB

FRONT-TO-BACK

• undgt; 20dB
• undgt;25dB

MAX INPUT POWER

• 50W

DC GROUND

• Yes

MECHANICAL SPECIFICATION
MATERIAL

• ABS

CONNECTOR

• 3xRPTNC

OUTER DIMENSIONS

• 272 x 276 x 96 mm
• 10.71 x 10.87 x 3.78 inch

WEIGHT

• 1.8 kg

OPERATING TEMPERATURE

• -40°C to +80°C
• -40°F to 176°F

MOUNTING KIT
DIMENSIONS

• 9.9 x 10.5 x 14.8 cm
• 3.9 x 4.13 x 5.83 inch

REGULATION RANGE

• +/- 30°

MAST DIAMETER RANGE

• 25 - 60mm
• 0.98-2.36 inch

MATERIAL

• Polyamide with fiberglass + galvanized steel U-Bolts

MOUNTING PLACE

• Wall or ceiling or mast.
