Product details

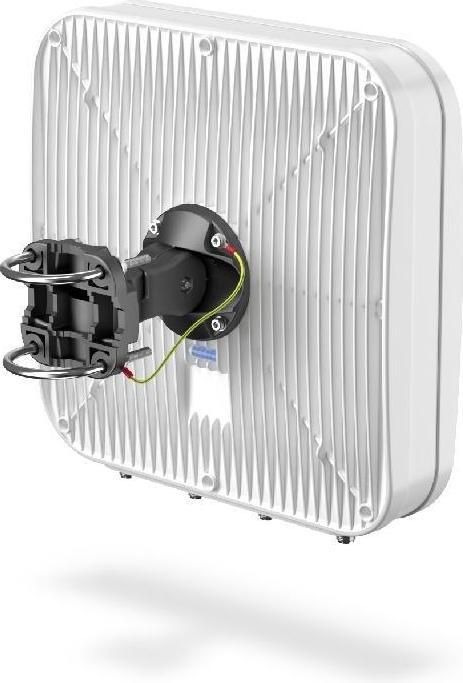

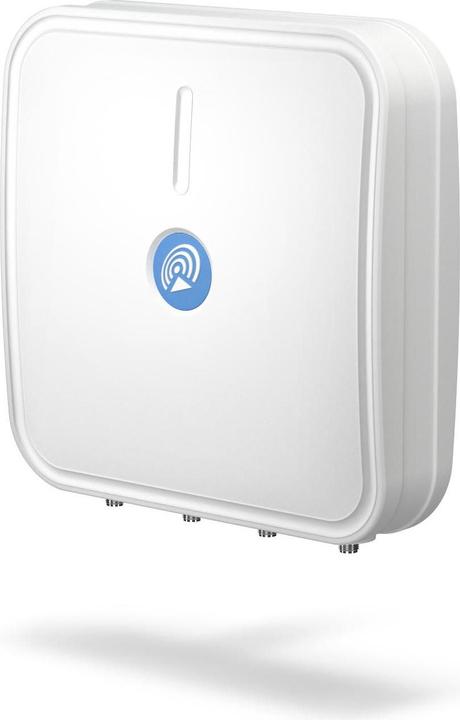

QuPanel 5G/LTE directional MIMO 4x4 high gain antenna is designed primarily for 5G and 4G LTE, but it is also compatible with 3G and 2G networks. This antenna enhances signal strength in rural and suburban areas where mobile signals are weak. It is intended for installation on buildings, either on a pole or a wall. With a very wide working frequency range, the antenna is a universal solution for 5G bands n77, n78 and LTE bands including LTE700, 800, 1800, 1900, 2100, 2300, 2600, 3400, and 3800. It is compatible with Teltonika and other MIMO 4x4 5G, LTE, 3G, and 2G modems and routers.
5G/LTE Antenna Specifications
- Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz; 3.3 - 3.8 GHz
- Supported LTE/5G bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 85, 103, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
- Gain: 0.694 - 0.96 GHz: 7 dBi; 1.7 - 2.2 GHz: 7 dBi; 2.2 - 2.7 GHz: 7.5 dBi; 3.3 - 3.8 GHz: 5.5 dBi
- Front-to-back: 0.694 - 0.96 GHz: >10 dB; 1.7 - 2.2 GHz: >12 dB; 2.2 - 2.7 GHz: >14 dB; 3.3 - 3.8 GHz: >17 dB
- VSWR: <1.70, max. <2.00
- Beamwidth: 70°/70° ±15°
- Polarization: Dual polarized X-Pol
- Impedance: 50 Ω
Mechanical Specifications
- Materials: ABS, aluminum, PTFE, fiberglass
- Ingress protection: IP67
- Dimensions: 392 x 392 x 99 mm (15.43 x 15.43 x 3.90 inch)
- Weight: 3.7 kg (8.16 lbs)
- Operating temperature: From -40°C to 75°C (from -40°F to 167°F)
- Cable length: N (f) connector
- Cable type: LMR195 white
- Connector type: 4x N (f) connectors.
