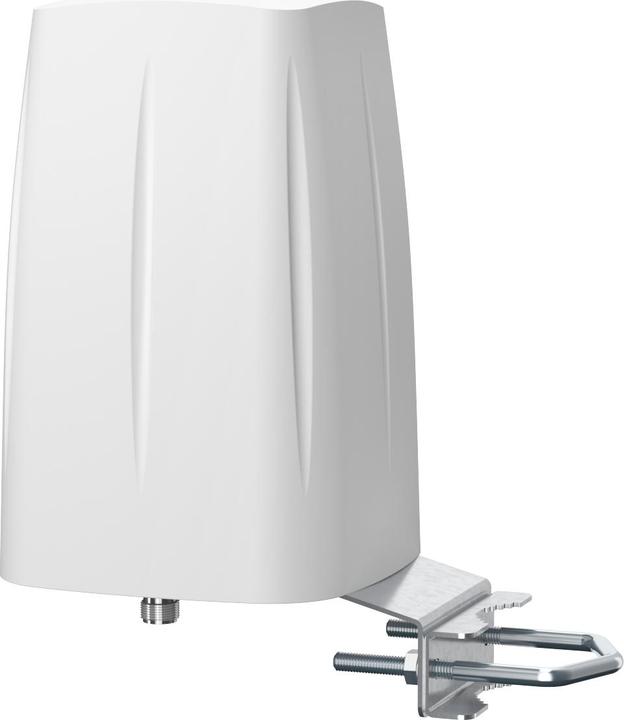

Quwireless QuOmni LTE MIMO 2x2, N (f) Connector

QuOmni LTE omnidirectional MIMO 2x2 LTE antenna operates in vertical polarization and is designed for LTE/3G/2G connections. It supports popular LTE bands (e.g., 3, 7, 20) with frequencies ranging from 694 to 2700 MHz. This antenna can be installed on buildings (on a pole or wall) as a client antenna or on moving vehicles such as trains, buses, lorries, yachts, and boats to receive Internet via LTE/3G. It is compatible with Teltonika models: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11, and other MIMO 2x2 LTE/3G/2G modems and routers.

LTE Antenna Specifications

• Frequency: 0.694 - 0.96 GHz, 1.7 - 2.2 GHz, 2.2 - 2.7 GHz

• Supported LTE/5G bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

• Gain: 0.694 - 0.96 GHz: 2 dBi; 1.7 - 2.2 GHz: 2 dBi; 2.2 - 2.7 GHz: 4 dBi

• VSWR: <1.60, max. <2.00

• Beamwidth: 360°/35° ±5°

• Polarization: Vertical

• Impedance: 50 Ω

Mechanical Specifications

• Materials: ABS, aluminum, PTFE

• Ingress protection: IP67

• Dimensions: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch)

• Weight: 1.5 kg (3.31 lbs)

• Operating temperature: From -40°C to 75°C (from -40°F to 167°F)

• Cable length: Nf connector

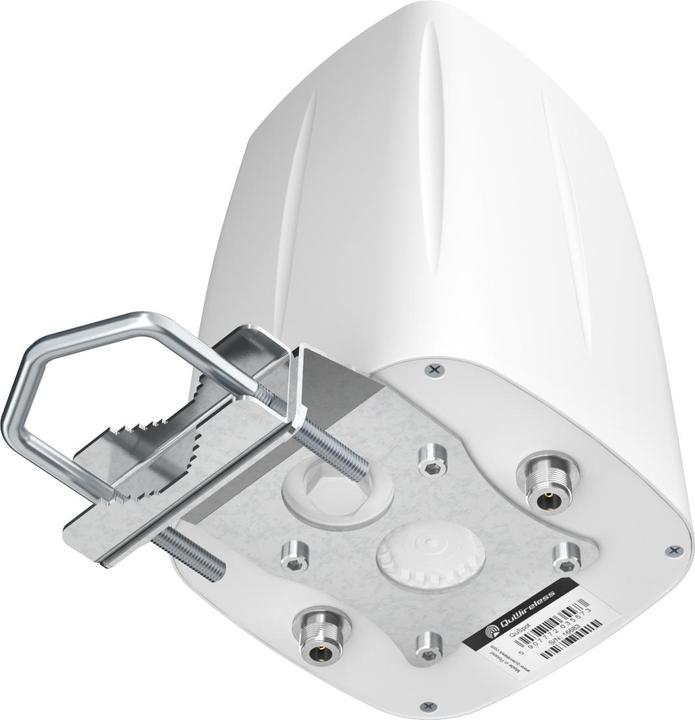

• Connector type: 2x Nf connectors.
