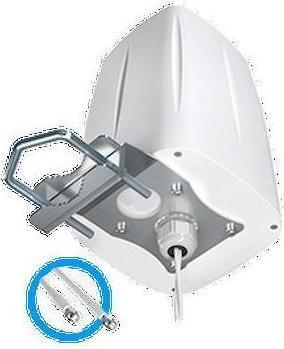

Quwireless QuOmni 5G/LTE MIMO 2x2, 10m

Omnidirectional Ultra-Wideband 5G/LTE MIMO 2x2 Antenna

The QuOmni 5G/LTE omnidirectional MIMO 2x2 is an ultra-wideband LTE outdoor antenna. It has been primarily designed for LTE/5G/3G/2G devices that require highly efficient connections. The antenna covers many LTE bands, including the new extended LTE band 71, with frequencies ranging from 617 to 3800 MHz. The mounting rail allows for the installation of the antenna on buildings (on a mast or wall) or on mobile points such as trains, buses, trucks, yachts, and boats to receive internet via LTE/5G/3G/2G. It is an ideal solution for use with all industrial and private 2x2 LTE modems and routers such as Teltonika, DIGI, Mikrotik, Robustel, and Cisco.

5G / LTE Antenna Specifications
Frequency

• 617 - 960 MHz
• 1.7 - 2.2 GHz
• 2.3 - 2.7 GHz
• 3.3 - 3.8 GHz

Gain

• 617 - 960 MHz: 3 dBi
• 1.7 - 2.2 GHz: 3.5 dBi
• 2.3 - 2.7 GHz: 3.5 dBi
• 3.3 - 3.8 GHz: 4 dBi

Supported LTE Bands

• 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G Bands

• n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

• <1.80, max <2.00

Beam Width

• 360°/35° ±5°

Polarization

• Vertical

Impedance

• 50 Ω

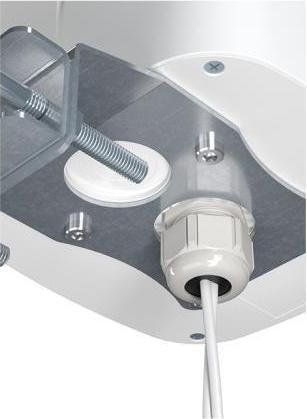

Mechanical Specifications
Materials

• ABS, Aluminum, PTFE

Connector Type

• 2x SMA connectors

Protection Class

• IP67

Dimensions

• 160 x 160 x 240 mm
• 6.3 x 6.3 x 9.45 inches

Weight

• 1.5 kg
• 3.31 lbs

Operating Temperature

• From -40°C to 75°C
• From -40°F to 167°F

Cable Length

• 5m or 10m

Cable Type

• LMR195 white

Mast Diameter

• 40-60 mm
• 1.57-2.36 inches.
