QuMax Antenna for Teltonika RUT2xx ver. US (Band71)
P/n: A240MUS

Integrated Multi-Band 5G Directional Antenna + Wi-Fi Omni Antenna + Installation Space for Teltonika RUT260/RUT241/RUT240/RUT200/RUT230 (All-in-One)

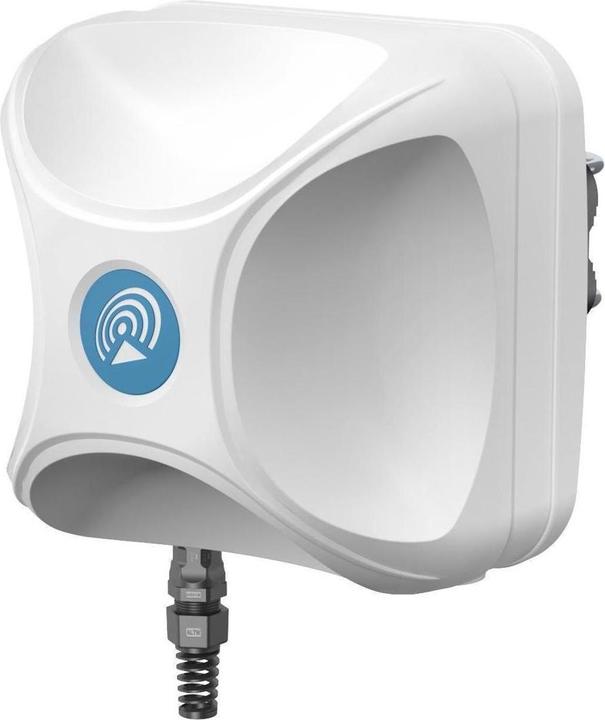

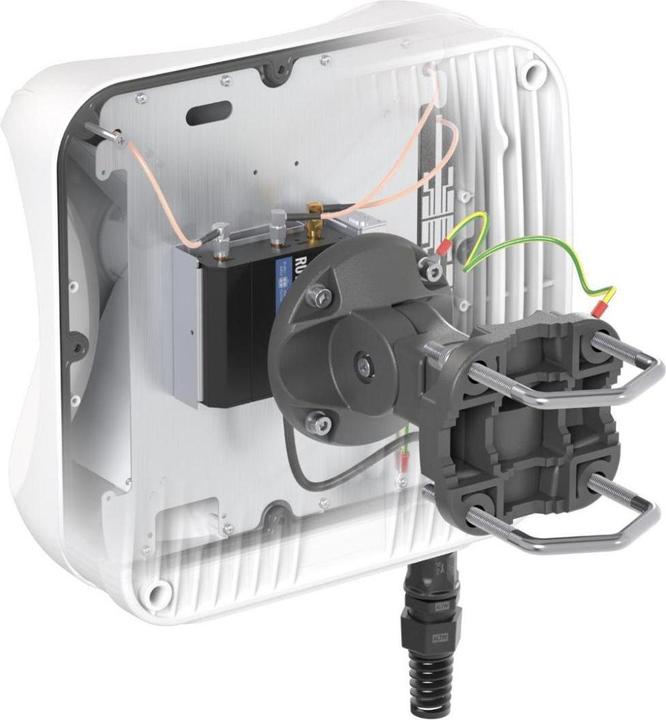

The QuMax for RUT2xx ver. US (Band71) is an outdoor antenna designed for reliable wireless connectivity in a variety of environments. It is intended for long-distance connections to the base station. It is designed to install Teltonika RUT271, RUT260, RUT241, RUT240, RUT230, or RUT200 routers in an IP68 enclosure. It is the first choice for fixed installations in industrial settings. It also features an integrated Wi-Fi omnidirectional antenna.

Note: An LTE antenna is not connected to the RUT230.

5G / LTE Antenna Specifications

• Frequency

617 - 960 MHz
1.7 - 2.7 GHz
3.3 - 4.6 GHz
4.7 - 6.0 GHz

• Gain

617 - 960 MHz: 6 dBi
1.7 - 2.7 GHz: 7 dBi
3.3 - 4.6 GHz: 7 dBi
4.7 - 6.0 GHz: 5.5 dBi

• Supported LTE Bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

• Supported 5G Bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

• VSWR < 2.00, max < 3.00
• Beam Width 80°/80° ±15°

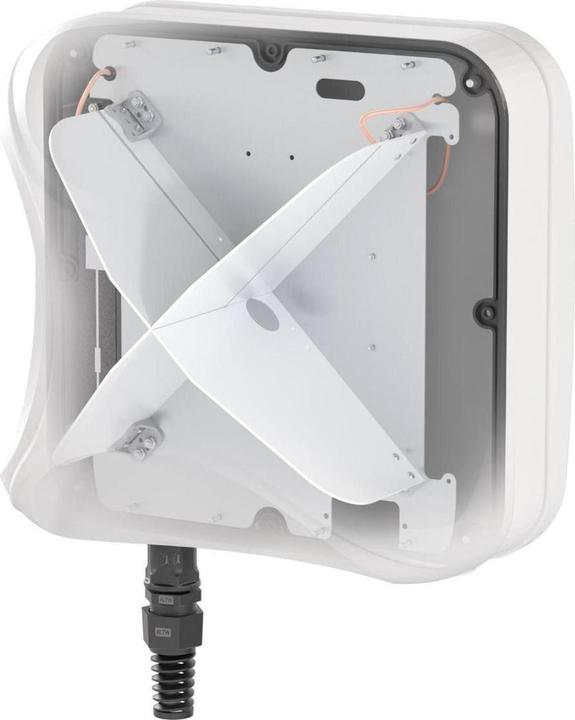

• Polarization X (+-45 degrees)
• Impedance 50 Ω
• Connection 2x SMA
• Cable Type RG316

Wi-Fi Antenna Specifications

• Frequency 2.4 - 2.5 GHz; 4.7 - 6.0 GHz
• Gain 2.4 - 2.5 GHz: 6 dBi; 4.7 - 6.0 GHz: 7 dBi
• VSWR < 1.70, max < 2.00
• Radiation Pattern 360°/25°
• Polarization Vertical
• Impedance 50 Ω
• Connection 1 x RPSMA
• Cable Type RG316
• Mechanical Specifications
• Materials ABS, Aluminum, PTFE, Fiberglass
• Connection Type RJ45.
