Quwireless QuMax for Peplink MAX BR1 Pro 5G CAT-20

Integrated Multi-Band 5G Directional Antenna, WiFi Omni Antenna, and GPS Antenna for Peplink MAX BR1 Pro 5G and CAT-20 (All-in-One)

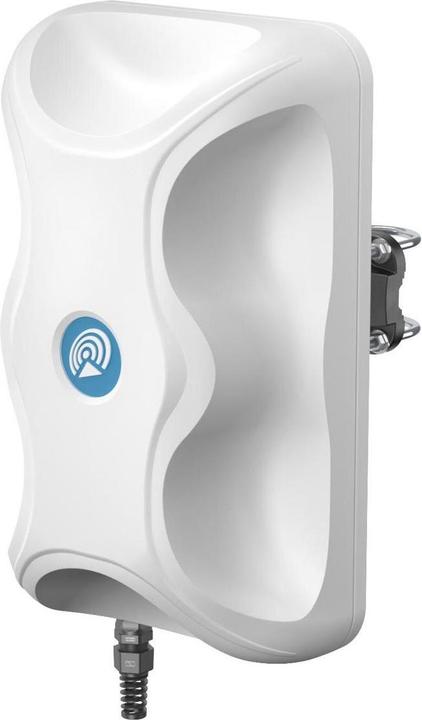

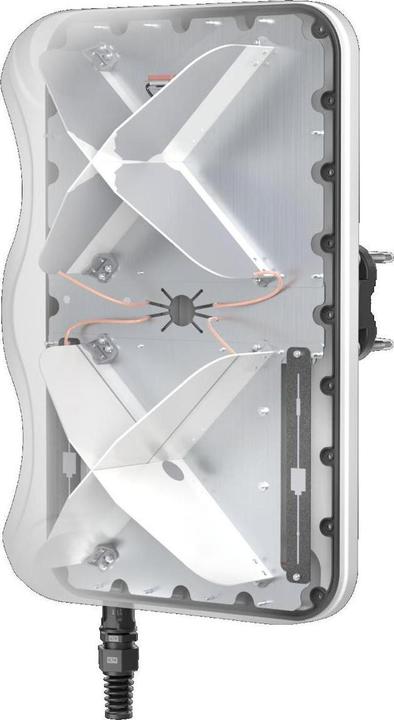

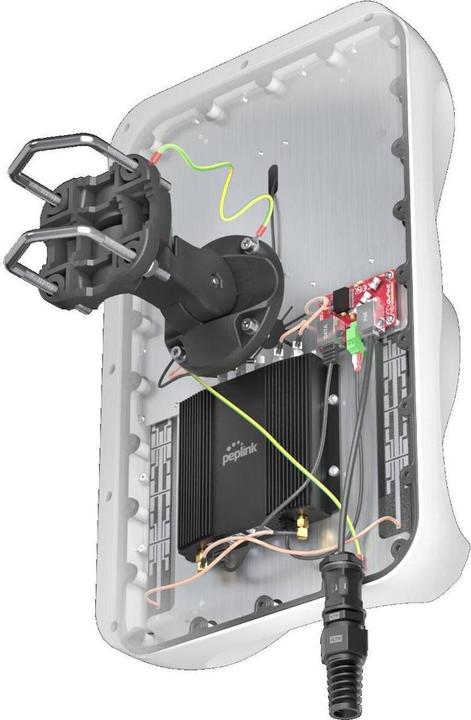

The QuMax All-in-One antenna for the Peplink MAX BR1 Pro 5G and CAT-20 router is designed for long-distance connections to the base station. It features an integrated directional antenna for 5G, Wi-Fi, and GPS. By using the QuMax Omni antenna with the MAX BR1 Pro 5G or CAT-20, you receive an integrated complete solution with a router and multi-band antennas housed in one unit. This is the top choice for permanent installations in industrial environments.

The set includes a passive PoE splitter, allowing you to separate data and power from a single Ethernet cable while maintaining gigabit transmission speeds. Additionally, the LAN port is protected against damage from overvoltage, short circuits, or improper connections.

5G/LTE Specifications

• Frequency: 617 - 960 MHz, 1.7 - 2.7 GHz, 3.3 - 4.6 GHz, 4.7 - 6.0 GHz
• Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 06
• Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
• Gain: 617 - 960 MHz: 6 dBi, 1.7 - 2.7 GHz: 7 dBi, 3.3 - 4.6 GHz: 7 dBi, 4.7 - 6.0 GHz: 5.5 dBi
• VSWR < 2.00, max < 3.00
• Beamwidth: 80°/80° ±15°
• Polarization: Vertical
• Impedance: 50 Ω

Wi-Fi Specifications

• Frequency: 2.4 - 2.5 GHz, 5.0 - 7.2 GHz
• Gain: 2.4 - 2.5 GHz: 6 dBi, 5 GHz: 7.5 dBi, 7 GHz: 7.5 dBi
• VSWR < 1.50, max < 2.00
• Radiation Pattern: 360°/25° ± 5°
• Polarization: Vertical
• Impedance: 50 Ω

Mechanical Specifications

• Material: BS,...
