Quwireless AXR12 - QuMax XR2 Bi-Directional Kit for RUTX12

• Integrated outdoor WiFi dual-band 2.4 & 5 GHz vertical antenna
• Bluetooth vertical antenna
• For installation of Teltonika RUTX12 (all-in-one)
• Up to 7 dBi antenna gain
• IP67
• Passive PoE support

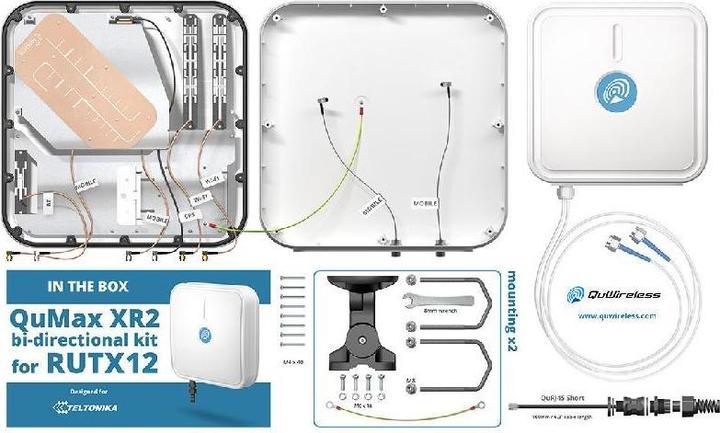

Set of two separate eXtra Range LTE directional antennas for bidirectional connection to two different LTE base stations. The main antenna also features dual-band Wi-Fi, GPS, Bluetooth antennas, and space for the installation of the Teltonika RUTX12 integrated. The second antenna is solely a directional LTE XR antenna.

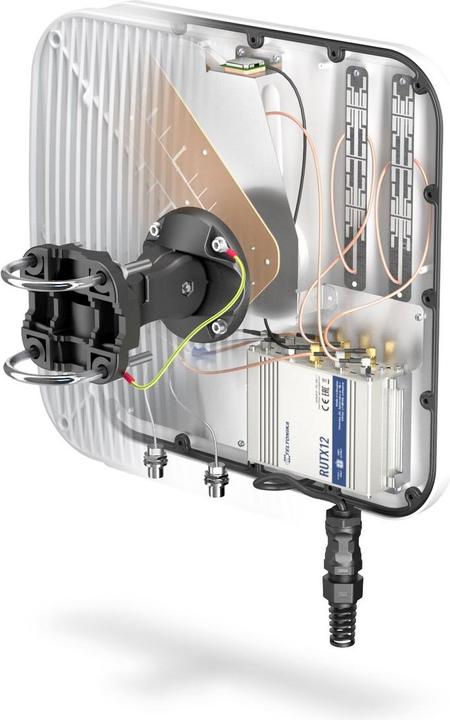

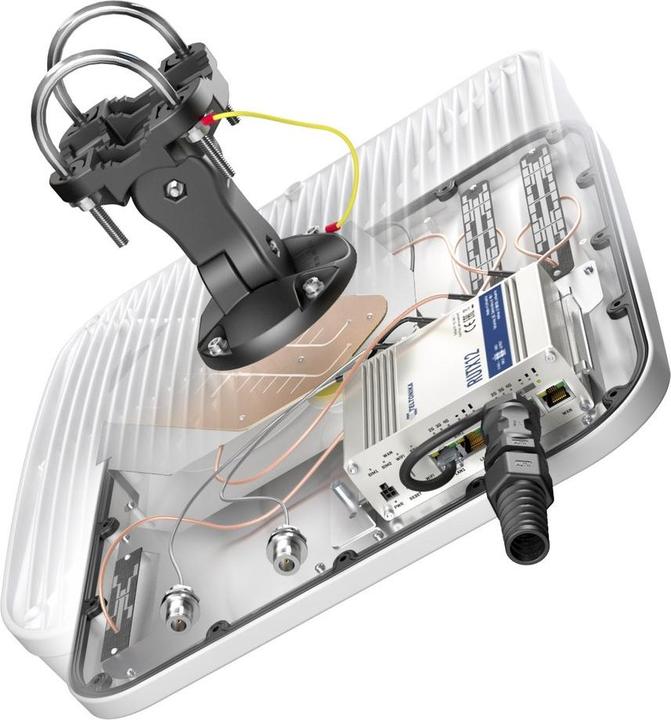

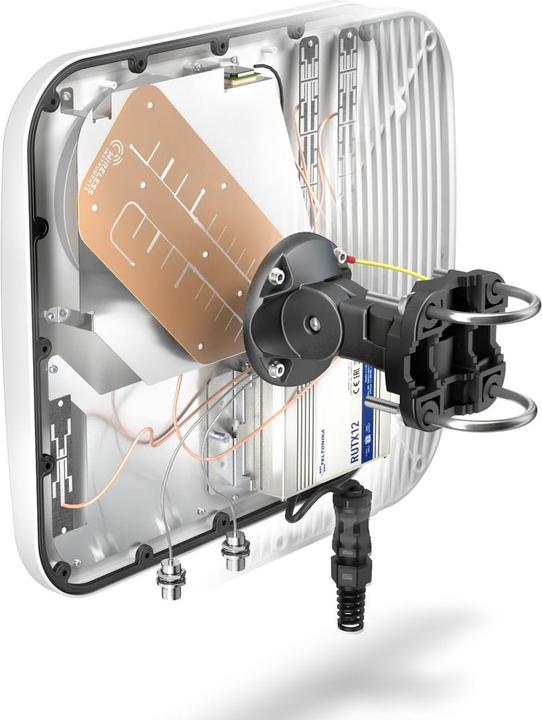

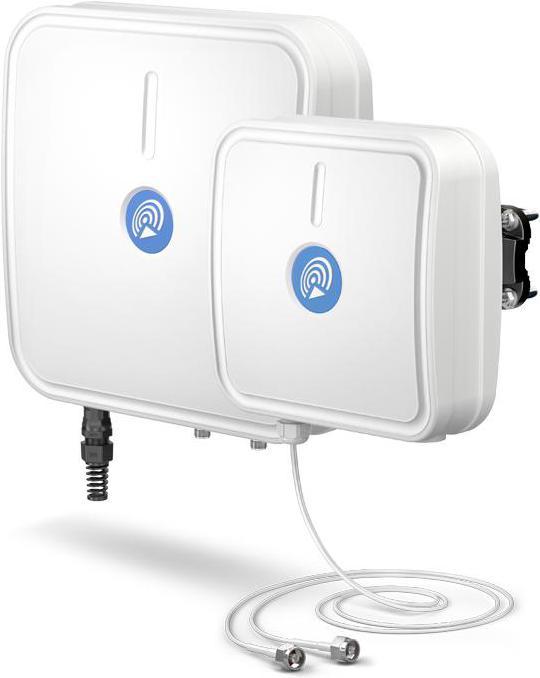

The QuMax XR2 is a bidirectional LTE eXtra Range antenna set (two separate antennas), with both connected to two different LTE base stations (it can also be connected to a single base station to achieve a greater share of transmission from that base station). The main antenna additionally includes integrated Wi-Fi dual-band, GPS, and Bluetooth antennas, 2x RF connectors for the second LTE antenna, and a space for installing the RUTX12 router in the antenna housing. The second antenna is just an LTE extra-range directional antenna and is housed in a smaller casing. The QuMax XR2 set is designed for long-range connections from the LTE base station to two different base stations, allowing optimal use of features such as load balancing and carrier aggregation.
