Quwireless AR5020MO - QuMax Omni for Robustel R5020

Integrated Multi-Band 5G/LTE Omni Antenna + Wi-Fi Omni Antenna + GPS Antenna + Installation Space for Robustel R5020 (All-in-One)

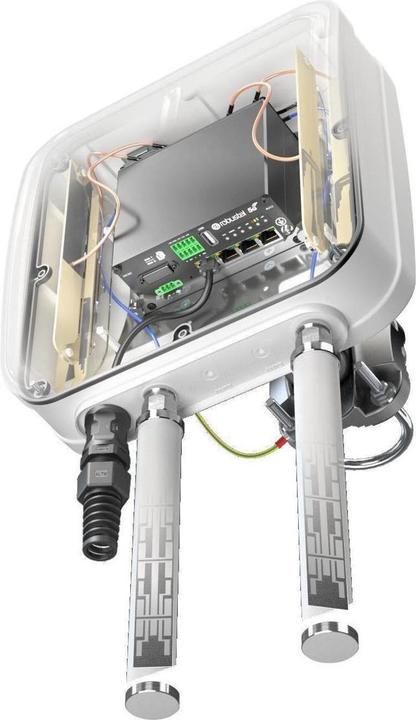

The QuMax Omni All-in-One Antenna for the Robustel R5020 Router is a perfect outdoor device for mobile and fixed installations such as industrial, public, CCTV, hotspots, yachts, boats, RVs, etc. It features a built-in 4*5G, 2*Wi-Fi, and GPS antenna. When using the R5020 Lite with the QuMax Omni antenna, you get an integrated complete solution with an integrated router and multi-band antennas in one housing.

Wi-Fi 6E support!

Note: This antenna comes in two different versions, depending on your router configuration. If you are using the R5020 with Power over Ethernet (PoE), please select the version "without PoE splitter." For the R5020 without PoE support, please select the version "PoE splitter." Compatible Robustel part numbers can be found in the specifications below.

5G / LTE Specification

Frequency

• 617 - 960 MHz
• 1.7 - 2.7 GHz
• 3.3 - 4.7 GHz
• 5.2 - 6.0 GHz

Gain

• 617 - 960 MHz: 3 dBi
• 1.7 - 2.7 GHz: 4 dBi
• 3.3 - 4.7 GHz: 4.5 dBi
• 5.2 - 6.0 GHz: 2.5 dBi

Supported LTE Bands

• 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G Bands

• n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

• <1.80, max <2.00

Beam Width

• 360°/35° +/- 5°

Polarization

• Vertical

Impedance

• 50 Ω

Wi-Fi Specification

Frequency

• 2.4 - 2.5 GHz
• 5.0 - 7.2 GHz

Gain

• 2.4 - 2.5 GHz: 6 dBi
• 5.0 - 6.0 GHz: 7.5 dBi

VSWR

• <1.70, max <2.00

Beam Width

• 360°/25° +/- 5°

Polarization

• ...
