Quwireless AR1520M - QuMax for Robustel R1520

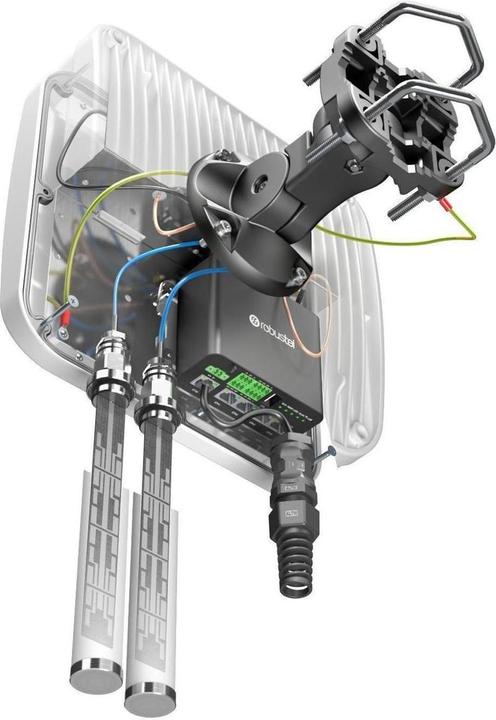

Integrated multi-band LTE directional antenna, Wi-Fi 6E antenna, GPS antenna, PoE splitter, and place to install Robustel R1520 (all-in-one).

The QuMax antenna for the Robustel R1520 router is an ideal outdoor device for enhancing signal strength in rural and suburban areas where mobile signals are weak. It features embedded directional LTE, Wi-Fi 6E, and GPS antennas. Using the R1520 with the QuMax antenna provides a complete integrated solution with an embedded router and multi-band antennas in one enclosure.

The set includes a PoE splitter, which allows you to split data and power from a single Ethernet cable while maintaining gigabit transfer speeds and protecting the LAN port from damage caused by overvoltage, short circuits, or improper connections.

LTE antenna specifications:
Frequency:

• 694 - 960 MHz
• 1.7 - 2.2 GHz
• 2.2 - 2.7 GHz

Supported LTE/5G bands:

• 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain:

• 694 - 960 MHz: 4 dBi
• 1.7 - 2.2 GHz: 5 dBi
• 2.2 - 2.7 GHz: 6 dBi

VSWR:

• <1.70, max <2.00

Beamwidth:

• 70°/70° ±15°

Polarization:

• Dual polarized X-Pol

Impedance:

• 50 Ω

Front-to-back:

• >10 dB

Wi-Fi antenna specifications:
Frequency:

• 2.4 - 2.5 GHz
• 5.0 - 7.2 GHz

Gain:

• 2.4 - 2.5 GHz: 6 dBi
• 5 GHz: 7.5 dBi
• 7 GHz: 7.5 dBi

VSWR:

• <1.50, max <2.00

Beamwidth:

• 360°/25°

Polarization:

• Vertical

Impedance:

• 50 Ω

Mechanical specifications:
Materials:

• ABS, aluminum, PTFE, fiberglass

Ingress protection:

• IP67

Connector type:

• RJ45

Dimensions:

• 272 x 276 x 96 mm
• 10.71 x 10.87 x 3.78 inch

Weight:

• 1.8 kg
• 3.97 lbs

Operating temperature:

• From -40°C to 80°C
• From -40°F to 176°F

Mast diameter:

• 25-60 mm
• 0.98-2.36 inch.
