Quwireless APLM2-H - QuPanel LTE HP MIMO 2x2 - Directional High Power multiband LTE MIMO 2x2 antenna

QuPanel LTE HP MIMO 2x2 is a directional high-performance multi-band LTE MIMO 2x2 antenna. This antenna is designed for 4G LTE and is also compatible with 3G and 2G networks. It enhances the signal in rural and suburban areas, as well as in locations with weak mobile signals. The antenna can be installed on buildings, either on a mast or on a wall. With a very wide working frequency range, it serves as a universal client for LTE bands including LTE700, 800, 1800, 1900, 2100, 2300, and 2600. It is compatible with Teltonika models such as RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11, and other MIMO 2x2 LTE, 3G, and 2G modems and routers.

LTE Antenna Specification:

• Frequency: 0.694 - 0.96 GHz / 1.7 - 2.2 GHz / 2.2 - 2.7 GHz
• Supported LTE bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85
• Gain: 0.694 - 0.96 GHz: 7 dBi / 1.7 - 2.2 GHz: 7 dBi / 2.2 - 2.7 GHz: 7 dBi
• VSWR: <1.70, maximum <2.00
• Beam width: 70°/70° +/-15°
• Polarisation: X-pole
• Impedance: 50 Ohm

Mechanical Specification:

• Materials: ABS, aluminium, PTFE, glass fibre
• Ingress protection: IP67

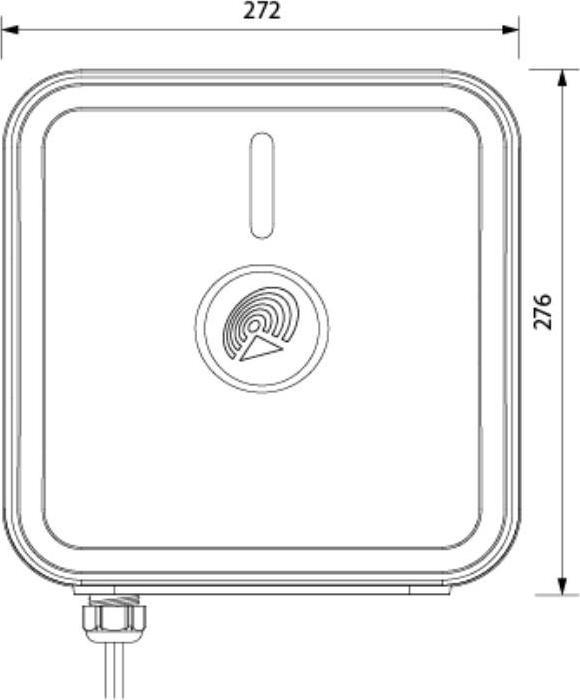

• Dimensions: 272 x 276 x 96 mm
• Weight: 1.8 kg
• Operating temperature: From -40°C to 75°C / From -40°F to 167°F
• Cable length: 2x 5m
• Connections: 2x SMA plugs.
