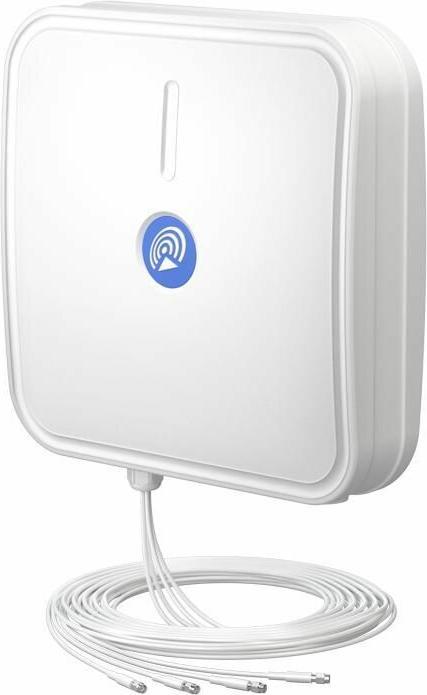

Quwireless AP5G4-1 - QuPanel 5G/LTE MIMO 4x4, 10 m Cable

AP5G4-1 - QuPanel 5G/LTE MIMO 4x4, 10 m Cable

The QuPanel 5G/LTE directional MIMO 4x4 high gain antenna is designed primarily for 5G and 4G LTE, but it is also compatible with 3G and 2G networks. This antenna enhances signal strength in rural and suburban areas, as well as locations with weak mobile signals. It is intended for installation on buildings, either on a pole or a wall. With a very wide working frequency range, the antenna serves as a universal client for the 5G bands n77, n78 and LTE bands including LTE 700/800/1800/1900/2100/2300/2600/3400/3800. It is compatible with Teltonika and other MIMO 4x4 5G/LTE/3G/2G modems and routers.

5G/LTE Antenna Specifications

• Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz; 3.3 - 3.8 GHz

• Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95

• Gain: 0.694 - 0.96 GHz: 7 dBi; 1.7 - 2.2 GHz: 7 dBi; 2.2 - 2.7 GHz: 7.5 dBi; 3.3 - 3.8 GHz: 5.5 dBi

• Front-to-back: 0.694 - 0.96 GHz: > 10 dB; 1.7 - 2.2 GHz: > 12 dB; 2.2 - 2.7 GHz: > 14 dB; 3.3 - 3.8 GHz: > 17 dB

• VSWR: < 1.70, max. < 2.00

• Beam width: 70°/70° +/-15°

• Polarization: Dual polarized X-pol

• Impedance: 50 ohms

Mechanical Specification

• Materials: ABS, aluminum, PTFE, fiberglass

• Ingress protection: IP67

• Dimensions: 392 x 392 x 99 mm (15.43 x 15.43 x 3.90 inch)

• Weight: 3.7 kg (8.16 lbs.)

• Operating temperature: From -40°C to 75°C (from -40°F to 167°F)

• Cable length: 10 m

• Cable type: LMR195 white

• Connector type: 4x SMA plug.
